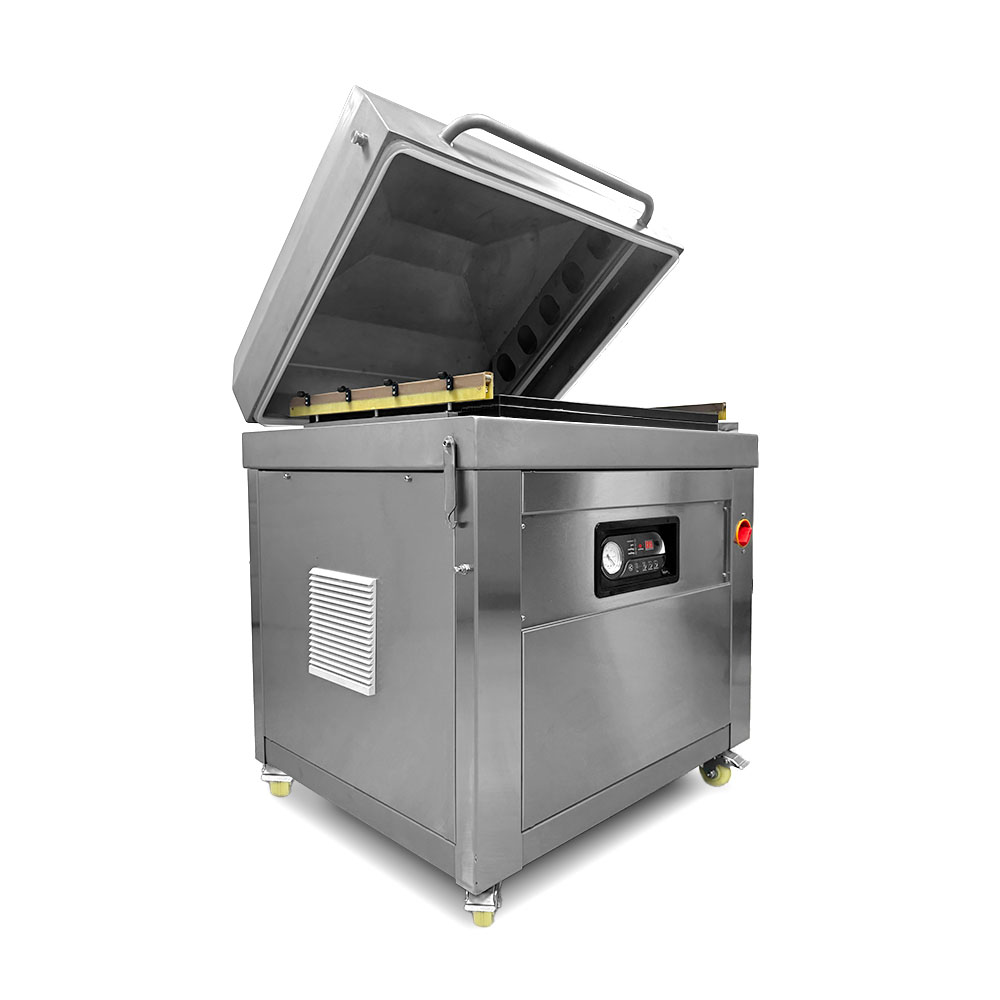

JVR Vac510 - Chamber Vacuum Sealer

SKU: VAC510

Categories: , ,

VacFlex Banner VacFlex Banner

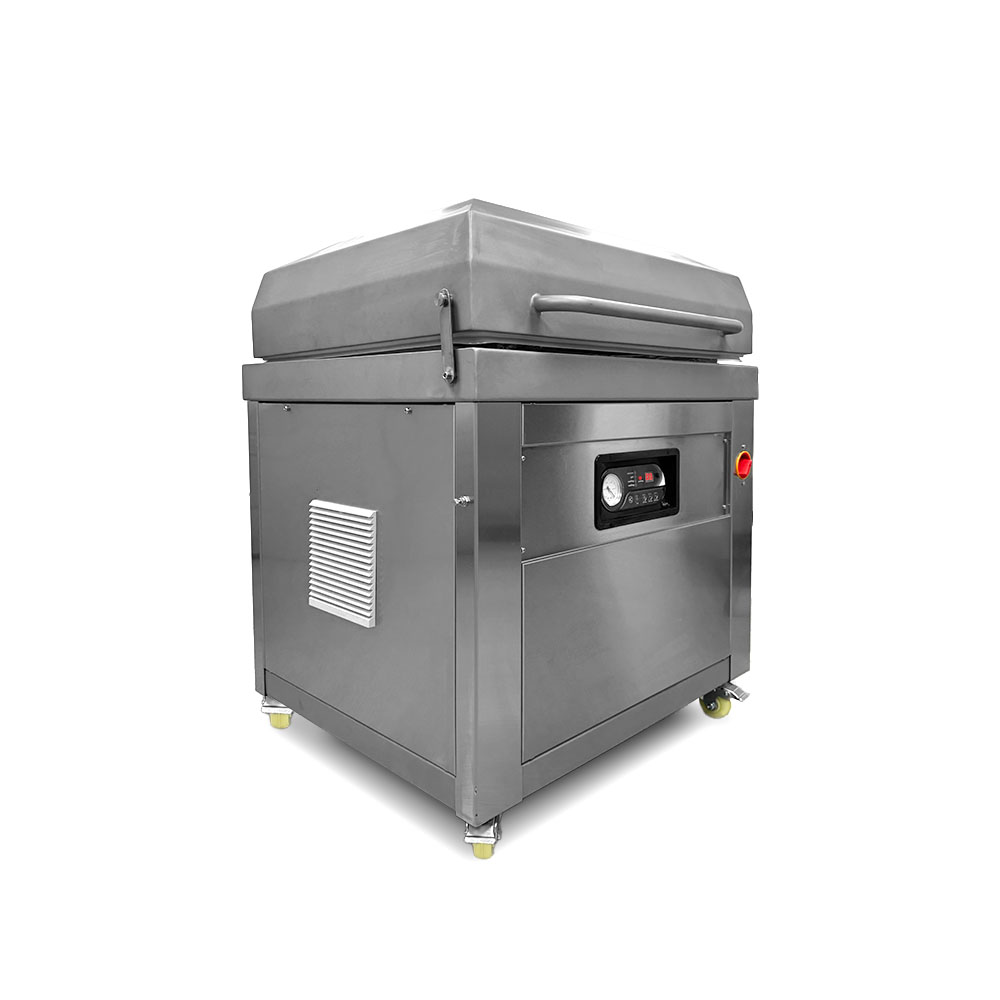

JVR Vac510 – Chamber Vacuum Sealer



The JVR Vac510 – Chamber Vacuum Sealer is built to exceed expectations. In terms of performance, it’s highly functional with a rotary vane vacuum pump. Furthermore, dual 24″ seal bars provide ample room to seal large items or multiple small items all at once. As a result, the Vac510 chamber vacuum sealer is ideal for primal cuts and other large meat items!

In addition, the 11″ maximum chamber height provides ample room for sealing high-profile products. Notably, the extra wide 10 mm seal wire is a unique feature for a machine at this price point. At the core of the machine, the vacuum pump plays a critical role, and the Vac510 is equipped with a highly efficient vacuum pump. With that in mind, its flow rate of 100 m³/h enables this beast of a machine to remove 99% of the air in under 30 seconds. Every unit is tested and we ensure it pulls a minimum vacuum of 29.8″ Hg (5 Torr).

Undoubtedly, we guarantee the JVR Vac510 will not disappoint and will exceed your expectations. Finally, gain access to unrivaled customer support via fully non-automated telephone services, support PDFs, and maintenance video walkthroughs.



NOTE: The Vac510 requires a 220-volt, 3 phase power supply.



JVR Vac510 - Chamber Vacuum Sealer

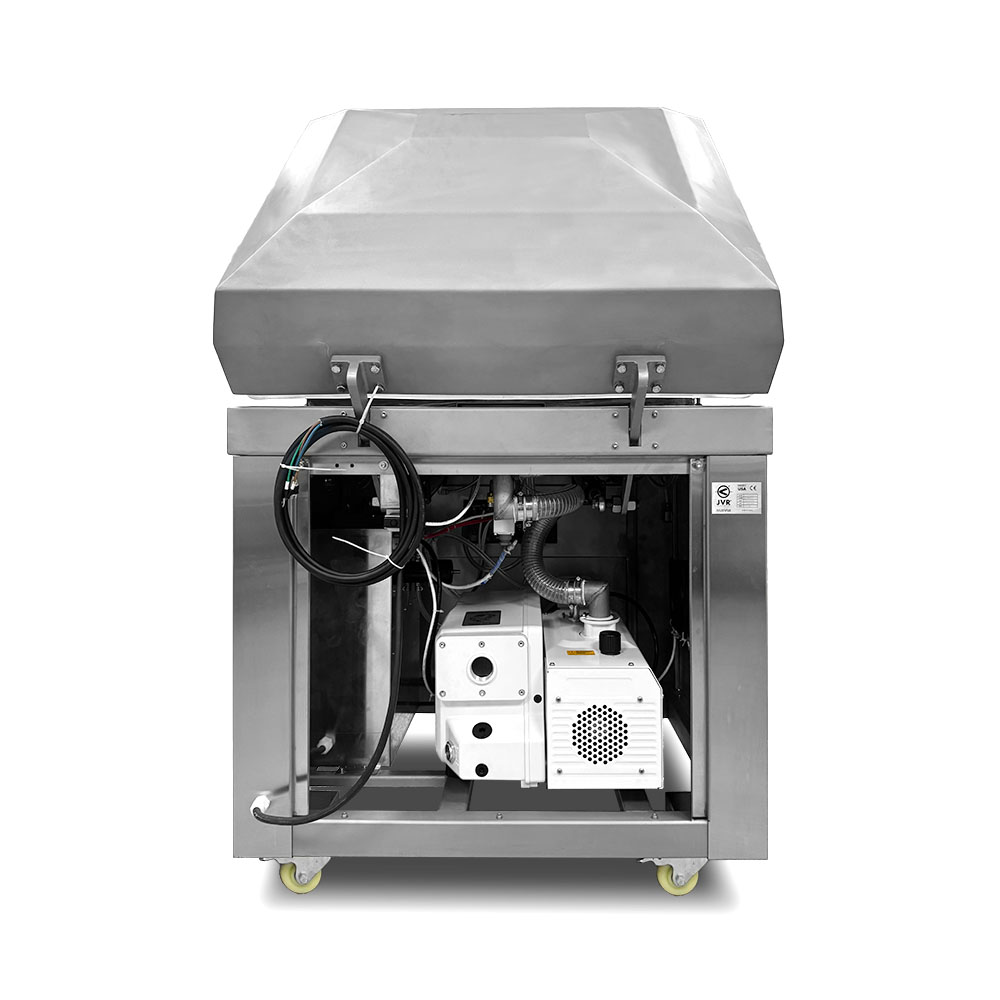

High Efficiency, Rotary Vane Vacuum Pump

Equipped with a commercial grade vacuum pump and capable of a 100 m³/h pumping speed, the Vac510 consumes 20% less energy than comparable pumps on the market.

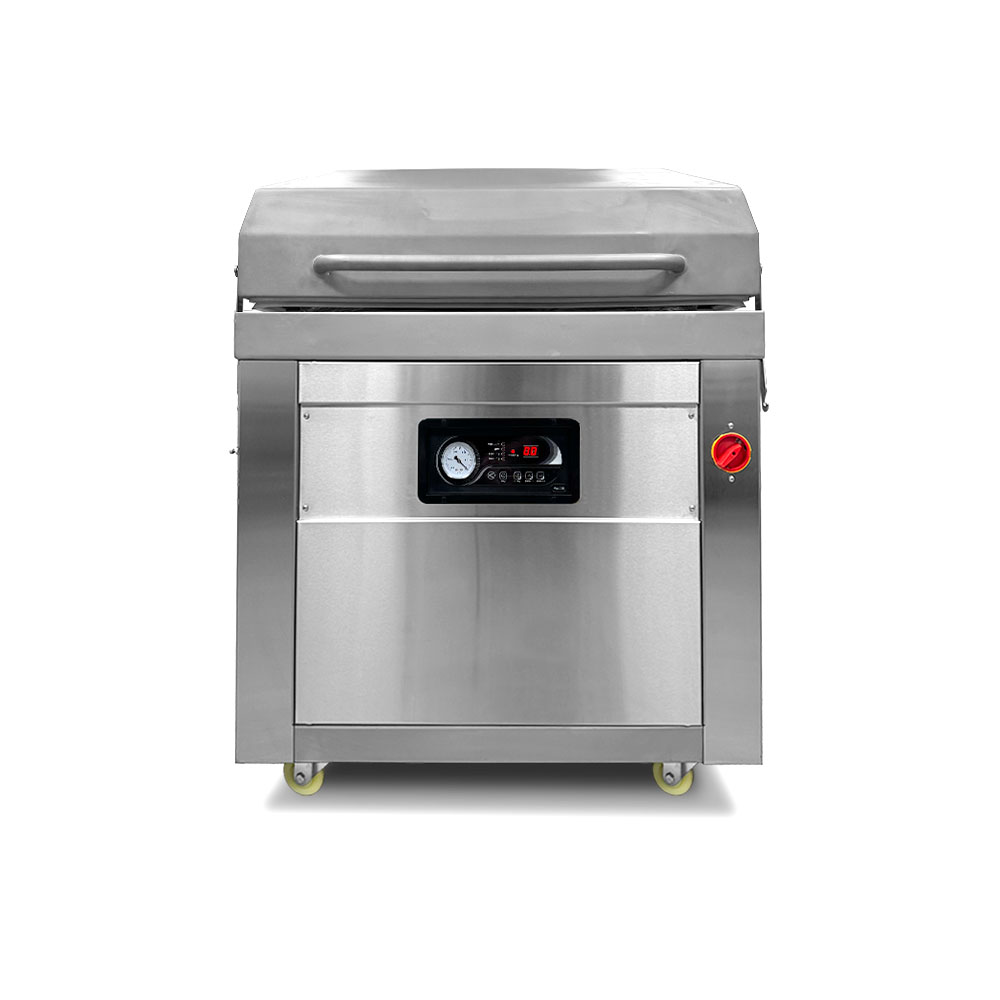

Vac510 Stainless Steel Lid | 510-40

Hygenic Stainless Steel Lid

Designed for ease of cleaning and maximum product clearance, this behemoth of a lid is perfect for large items that simply won’t fit into most chamber sealers on the market.

JVR Vac510 - Chamber Vacuum Sealer

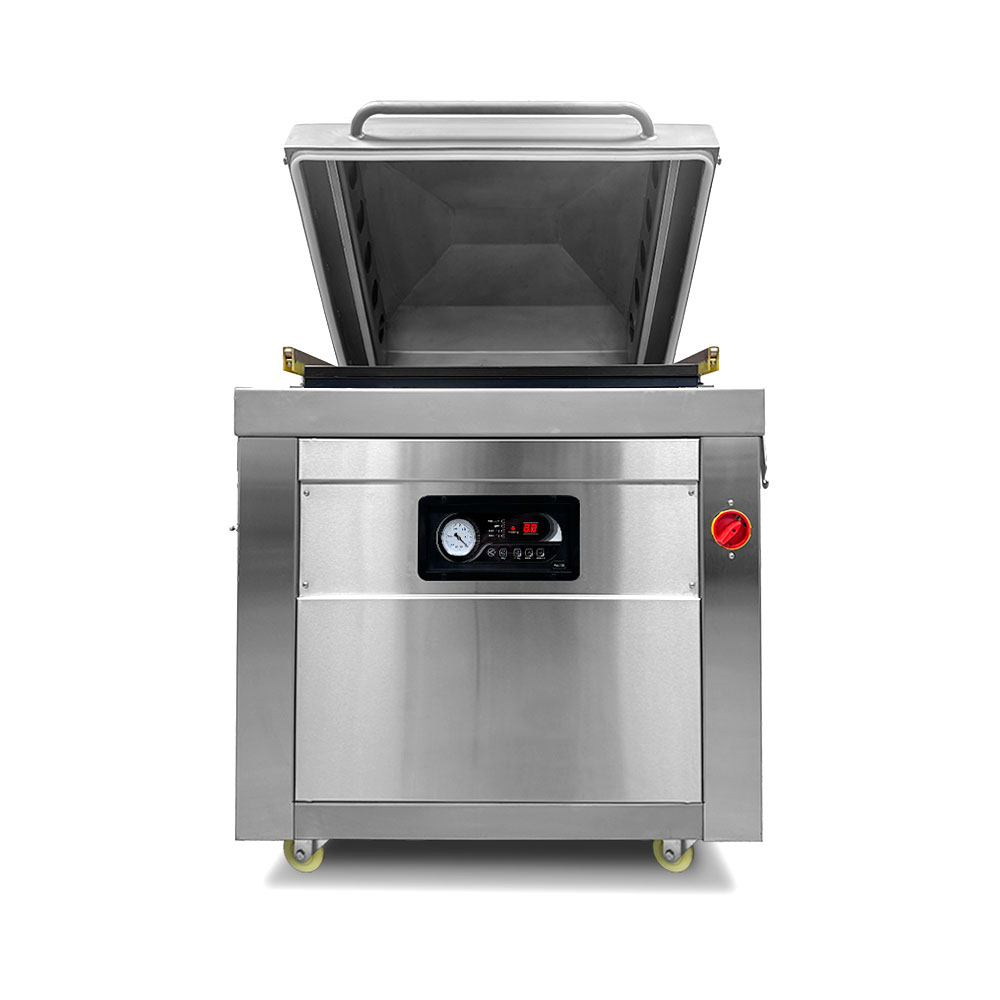

Large Vacuum Chamber With a Flat Deck

With 24″ seal bars and over 28″ between the bars, there is ample chamber space. The flat deck design makes loading and clean up fast & efficient.



VacSeries Models Vac510 Vac410
Machine Size

(W, D, H)

37″ x 33” x 46

(LID OPEN [H] 60″)

29″ x 29” x 38.5

(LID OPEN [H] 54.7″)

Chamber Size

(W, D, H)

33″ x 25.5” x 11.5 24.7″ x 24.7” x 6.3
Heat Strip Width 10 mm 10 mm
Seal Bar Length  24″ (x2)  24″ (x2)
Seal To Seal (L) 28.7″ 21″
Max Pouch Size 24″ x 30″ 24″ x 26″
Machine Weight 580 lbs 350 lbs
Amperage 13 Amps max 14 Amps max
Voltage 220 V / 3 ph / 60 Hz 220 V / 1 ph / 60 Hz
Vacuum Pump Capacity 100 m³/h flow rate 24 m³/h flow rate (x2) = 48 m³/h flow rate

Twin 1 1/4 hp Pumps

Accessory Capable? No No
Retort Capable? No No
Pump Type Oil Lubricated Rotary

Vane Vacuum Pump

Oil Lubricated Rotary

Vane Vacuum Pump

Hinging Body No No
dB at Room Temp 70 70

Specifications are subject to change without notice.

Package Contents:

Quart of Oil (VacOil)

2 – Heat Strip Replacement

2- Seal Bar Tape Replacement

2 – Filler Plates

Features:

100% Stainless steel body and frame

Reinforced stainless steel chamber

Flat Deck for Easy Wash-down

Deep Chamber For Large Cuts

Two 24″ seal bars

Fast cycle times

Programmable digital controls

100 m³/h rotary vane vacuum pump

Toolless seal bar removal

10mm extra-wide seal wire
