Sipromac Model TM-050 Compact

Features:

  • Welded, stainless steel frame
  • Stainless steel loading area
  • 5/8” conveyor chain
  • Schneider PLC control unit
  • Touch control panel, with user-friendly interface
  • Schneider servo motor drive for accurate speed control
  • Electric cabinet (IP65)
  • Pneumatic component cabinet
  • Protection guard with electronic interlock system
  • 2 independent tool lifting stations
  • Trim re-winder
  • Water cooled tooling
  • 3 operation modes
  • Automatic chain lubrication
  • Cross cut guillotine (1)
  • Easy changeover of sealing plates
  • 100m3 / 5.0 Hp Busch pump
  • Exit chute
  • Rotating knives (1 set)
  • Active film unwinding system with dancer roll
  • User manual and set of spare parts
  • Stainless steel adjustable legs
  • CSA Certification

Options:

  • Unloading conveyor system
  • Printing system
  • Photo cell for pre-printed film
  • Quick compressed air forming capacity
  • Remote diagnostic avaialable
  • Dedicated top and bottom vacuum valves
  • Gas injection system (MAP)
  • Multiple supply voltage
  • Vacuum pump sizes
  • Oxygen vacuum pumps for MAP with added 21% of oxygen mixture
  • Booster pump
MODEL TM-050
POWER SUPPLY 208 V – 3 pH – 60 Hz
VACUUM PUMP Busch RA0100 (5hp)
COMPRESSED AIR SUPPLY 12 cfm @ 80 psi
COOLING WATER SUPPLY Max 30 gph @ 14 psi
MAXIMUM FORMING FILM GAUGE 16 mil
FORMING FILM WIDTH 320/ 420mm
MAXIMUM FORMING DEPTH 80mm
CUT OFF LENGTH 200/ 250/ 300mm
FORMING METHOD Vacuum

Specifications are subject to change without notice.

Your Name (required)

Your Email (required)

Subject (required)

Your Message

Rollstock Inc Model RA-200

Features:

  • Solid frame construction (aluminum or stainless steel) allowing for easy setup and moving.
  • Lowest cost of ownership – uses off the shelf components where possible
  • Mitsubishi or Allen Bradley touch screen controls available
  • Proven die lift system
    • Multiple cut off lengths
    • Multiple web widths
    • Totally customizable die configurations available
  • Proven sealing system
    • Full seal
    • E-Z peel corners
    • Perimeter seal
  • Proven forming system
    • Standard air forming
    • Air over vacuum forming
    • Perimeter forming (for deep pockets)
    • Plug assist (for the deepest pockets)
    • Preheating (for plug assist and semi-rigid films)
  • Improved vacuum control
  • Busch vacuum pumps
  • Updated cutting system

Your Name (required)

Your Email (required)

Subject (required)

Your Message

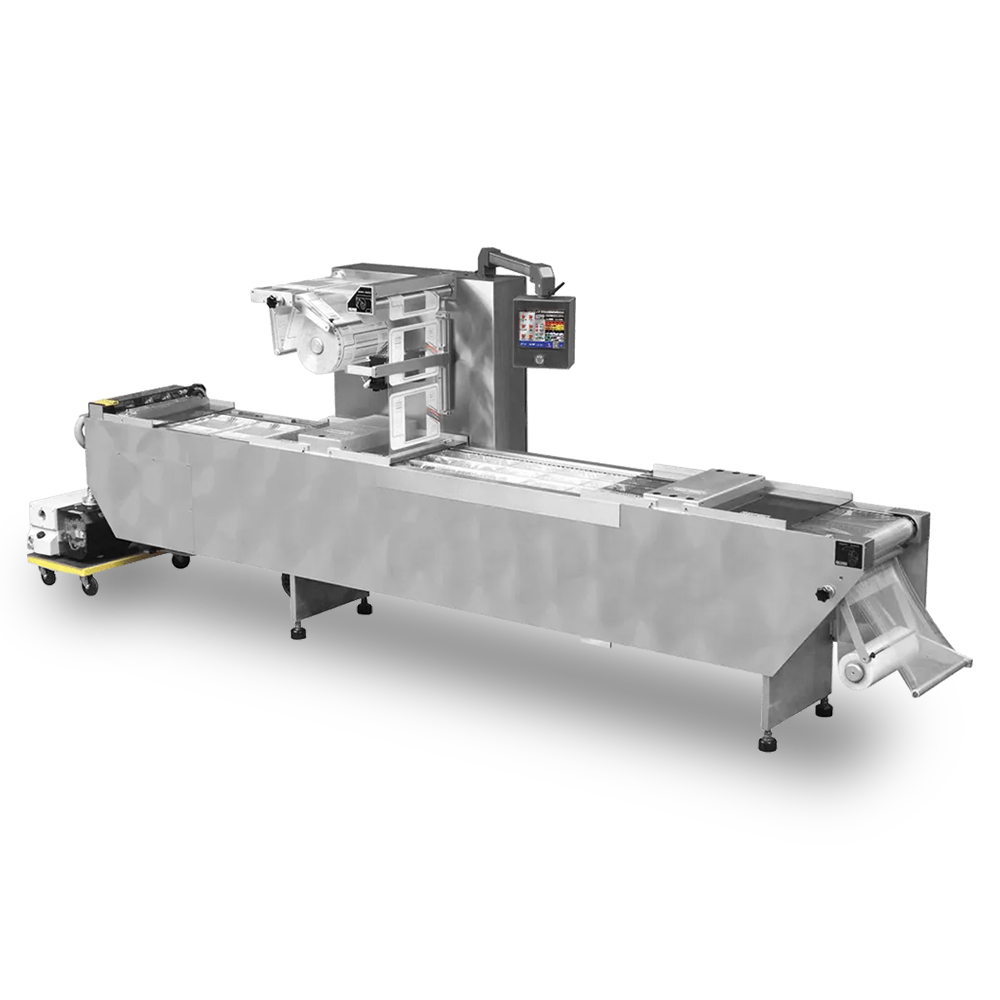

Rollstock Inc Model RI-200

Features:

  • Solid frame construction (aluminum or stainless steel) allowing for easy setup and moving.
  • Lowest cost of ownership – uses off the shelf components where possible
  • Mitsubishi or Allen Bradley touch screen controls available
  • Proven die lift system
    • Multiple cut off lengths
    • Multiple web widths
    • Totally customizable die configurations available
  • Proven sealing system
    • Full seal
    • E-Z peel corners
    • Perimeter seal
  • Proven forming system
    • Standard air forming
    • Air over vacuum forming
    • Perimeter forming (for deep pockets)
    • Plug assist (for the deepest pockets)
    • Preheating (for plug assist and semi-rigid films)
  • Improved vacuum control
  • Busch vacuum pumps
  • Updated cutting system
  • Stainless steel water resistant control cabinet
  • Optional extended load area
  • Optional extended cutting or discharge area
  • Options
    • Code Dating
    • Printed top film registration
    • Loaders
    • Top and bottom web labelers
    • Printers
