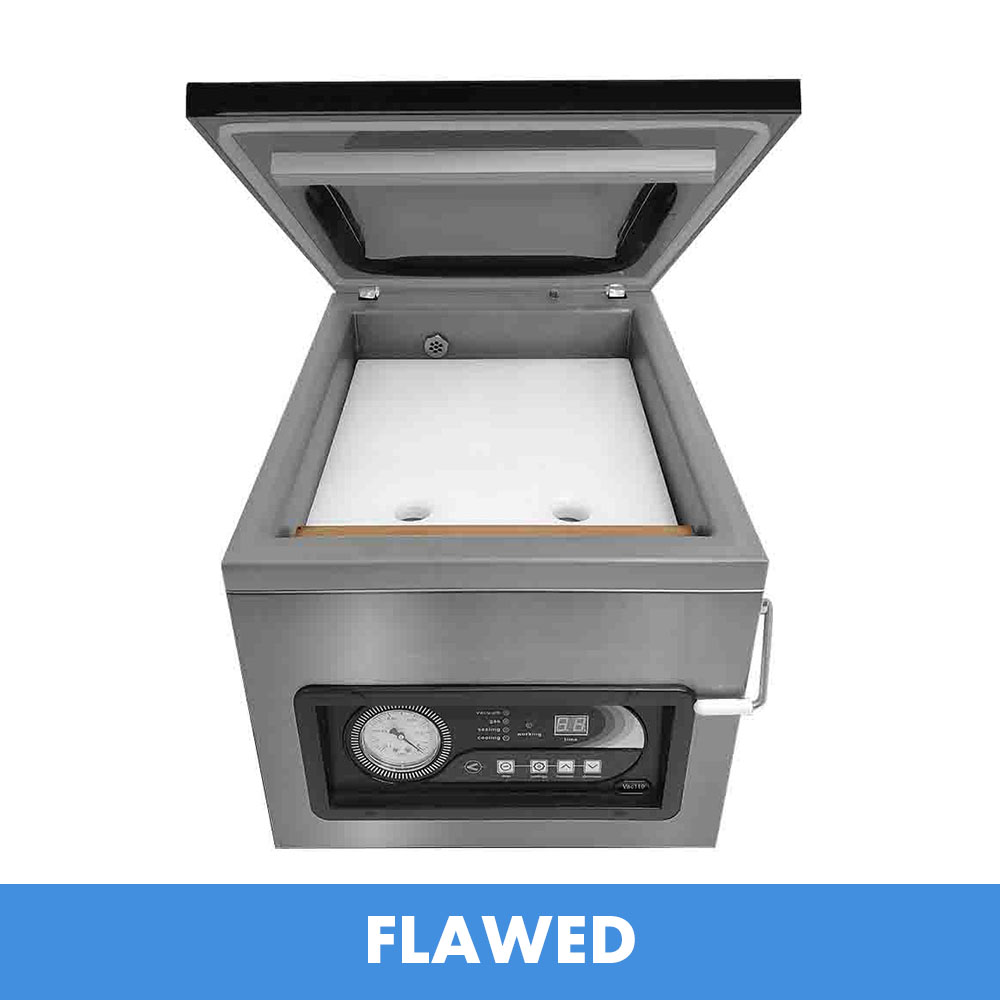

[FLAWED] JVR Vac110 – Chamber Vacuum Sealer
POWERHOUSE CHAMBER VACUUM SEALER.
The JVR Vac110 – Chamber Vacuum Sealer, may be small but it’s a workhorse built with durability and speed in mind. Best chamber vacuum sealer for home use while promoting high-frequency packaging! Can be used commercially or at home! Capable of sealing up to 11″x 16″ chamber vacuum pouches, the JVR Vac110 stands apart from its competition.
Powerful Rotary Vane Oil Lubricated Vacuum Pump
At the heart of every vacuum sealer is the vacuum pump and the Vac110 touts a powerful 1/3hp, oil-lubricated vacuum pump, capable of evacuating 99% of the air in 30 seconds. Reap the oil pump benefits of a longer life span, better vacuum draw, and overall less noise compared to dry vacuum pumps.
Transparent Acrylic Lid
The transparent acrylic lid on our unit serves two purposes. The primary function is to view the product during operations. Optimal viewing is critical when problems arise so that the customer can diagnose the issue more rapidly under our direction. The second purpose of the lid is to promote faster vacuum cycle times for lower-profile products. Reduce vacuum cycle times up to 14 seconds in tandem with 4 filler plates for lower profile products in the JVR Vac110!
Extra-Wide Seal Integrity
The JVR Vac110 is equipped with a massive 8mm heat strip, otherwise known as seal wire. Typically speaking, vacuum chambers are paired with a dual 3mm heat strip in their seal bar assembly. JVR Industries wanted to reduce heat strip changeover times and grant extra insurance in the seal integrity.
Great Mason Jar Capability!
Inside the chamber of the unit, you are able to fit 4 – 16 ounce (473ml) regular mouth Ball mason jars upright (as pictured). Additionally, seal up to 9 – 8 ounce (236ml) regular mouth Ball mason jars upright in the chamber. Sealing multiple mason jars at one time outpaces all external edge, suction vacuum sealers in the market today!
If you need more room for larger mason jars, you may want to consider the JVR Vac100.
Retort Capable Chamber Vacuum Sealer – JVR Vac110
The JVR Vac110 is one of the only at-home use, industrial-style chamber vacuum sealers with a specifically designed bar to seal off retort pouches and mylar bags. The perfect companion for those who are doing retort canning, freeze-dried goods, MREs, and so on! If you need a retort vacuum sealer, look no further! The Vac110 is the perfect tool to get the job done!
Ideal Use for the JVR Vac110 – Chamber Vacuum Sealer
The JVR Vac110 is ideal for avid hunters and fishermen/anglers who are processing game at home, food preservationists, homesteaders, sous vide applications, small businesses, restaurants, and more!
Replacement Seal Bar Tape
Replacement Heat Strip
Filler Plates (Quantity of 2)
Bottle of Oil (VacOil)
IEC Power Cable
Replacement Lid Chamber Gasket
Sample Pack VacPouch
SIZES INCLUDE: 3 MIL – 6×10, 8×12, 11×13, 11×16 • 4 MIL – 8×12
Stainless steel body
Reinforced stainless steel chamber
Fast cycle times
Simple digital controls
Transparent acrylic lid
Oil lubricated, high flow, vacuum pump
Tool-less seal bar removal
8mm extra-wide seal wire
(W, D, H)
|14.7″ x 19.8″ x 16″
(LID OPEN [H] 25.5″)
|16.2″ x 19.3″ x 8.3″
(LID OPEN [H]: 23″)
(W, D, H)
|11.3″ x 15.2″ x 5.2″||13.8″ x 12″ x 4.3″|
|Heat Strip Width||8mm||6mm|
|Seal Bar Length||11″||12.3″|
|Seal To Chamber Back (L)||13.3″||9.8″|
|Max Pouch Size||11″ x 16″||12″ x 14″|
|Machine Weight||77 lbs||52 lbs|
|Amperage||6 Amps max||5 Amps max|
|Voltage||110V / 1ph / 60Hz||110V / 1ph / 60Hz|
|Vacuum Pump Capacity||8m3/h flow rate
|4m3/h flow rate
|Pump Type||Oil Lubricated Rotary
Vane Vacuum Pump
|Oil Lubricated Rotary
Vane Vacuum Pump
|Room Temperature (dB)||70||65|
Specifications are subject to change without notice.
Keep up to date with our Youtube to learn how to service your own Vac110 along with tips and tricks!
