Features:
- Stainless Steel (# 304) Construction
- Centrifugal Brine Pump

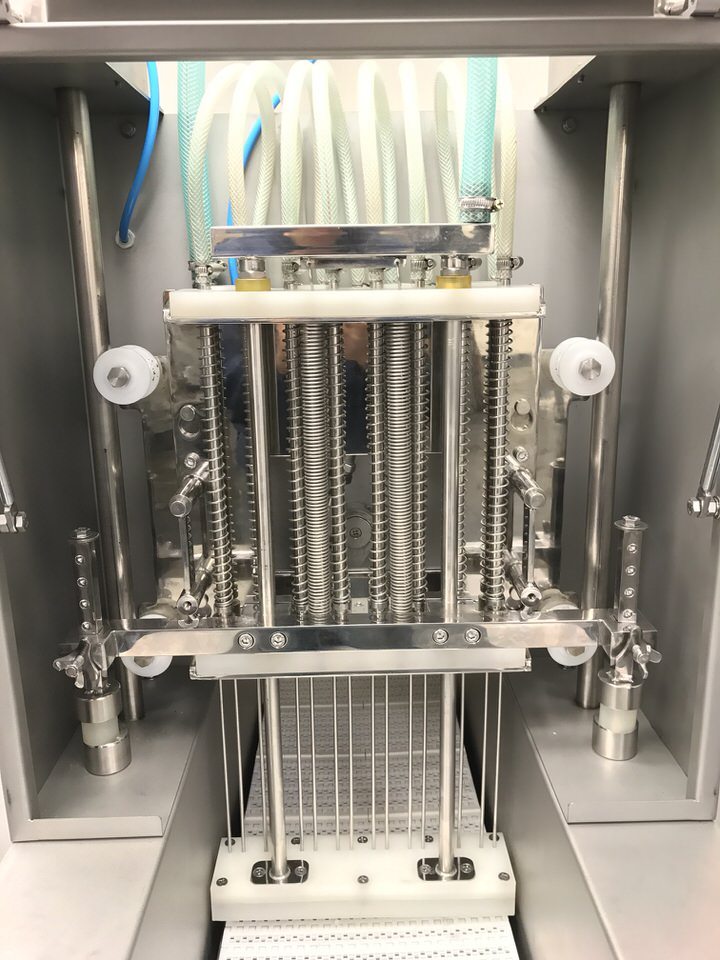

- Spring Head Design for Needle Force
- Simple Analog Controls
- Easy to Remove & Clean Conveyor
- Easy to Replace Needles
- Stainless Steel (# 304) Brine Tank
Brine Injectors

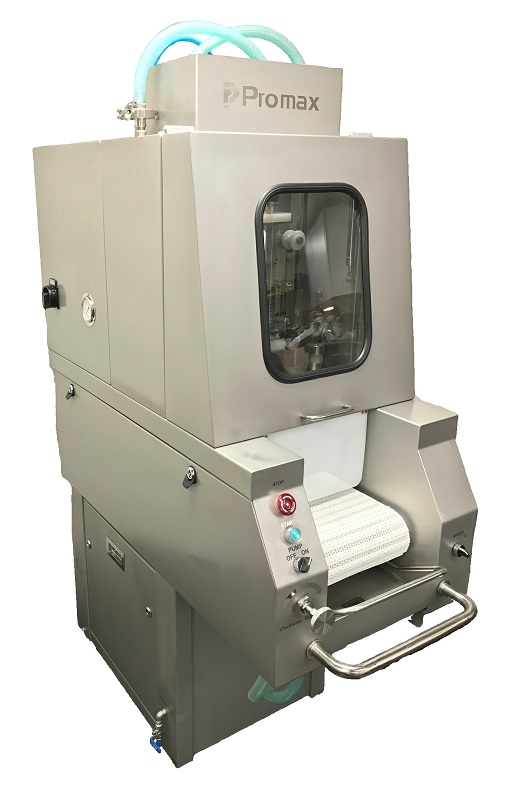

Promarks Model MSK-16 Brine Injector
| MODELS | MSK-16 |
|---|---|
| Number of Needles | 16 |
| Conveyor Width | 12″ / 305mm |
| Speed (strokes/min) | 32 or 72 (two speeds) |
| Max Product Height | 8″ / 203mm |
| Brine Tank Capacity | 16 gal / 60 liters |
| Machine Size LxWxH | 55″ x 29″ x 67″ |
Specifications are subject to change without notice.

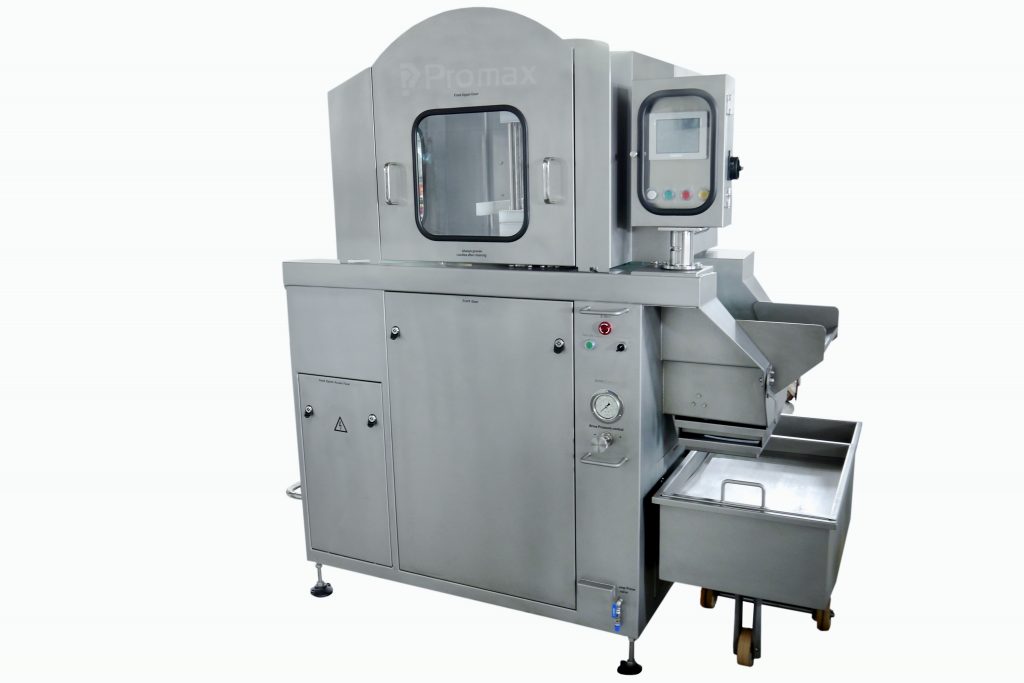

Promarks Model MSK-32 Brine Injector
Features:
- Stainless Steel (# 304) Construction

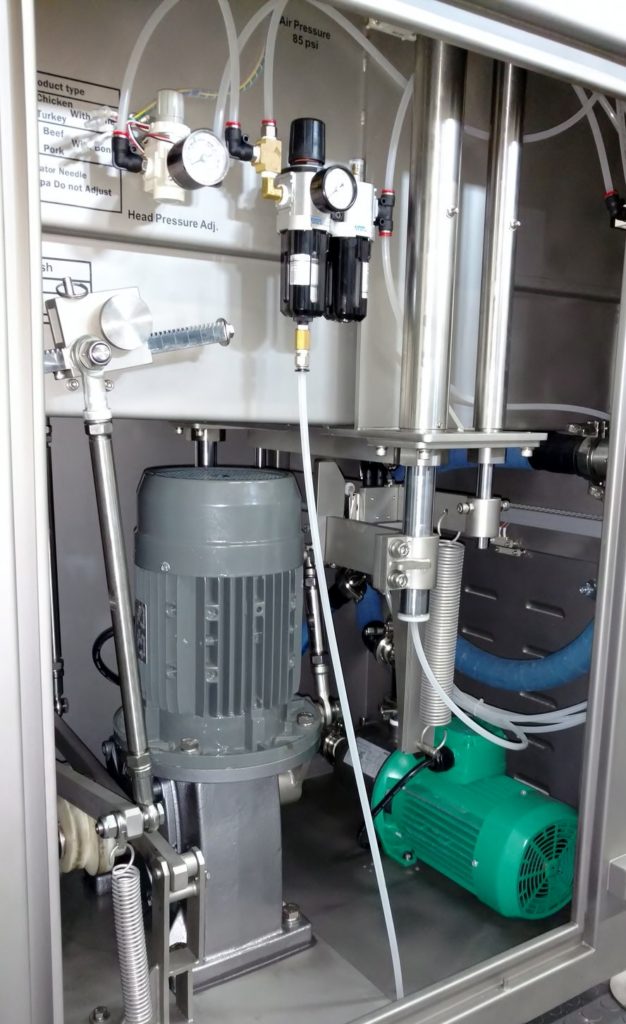

- Centrifugal Brine Pump
- Stainless Steel (# 304) Brine Tank

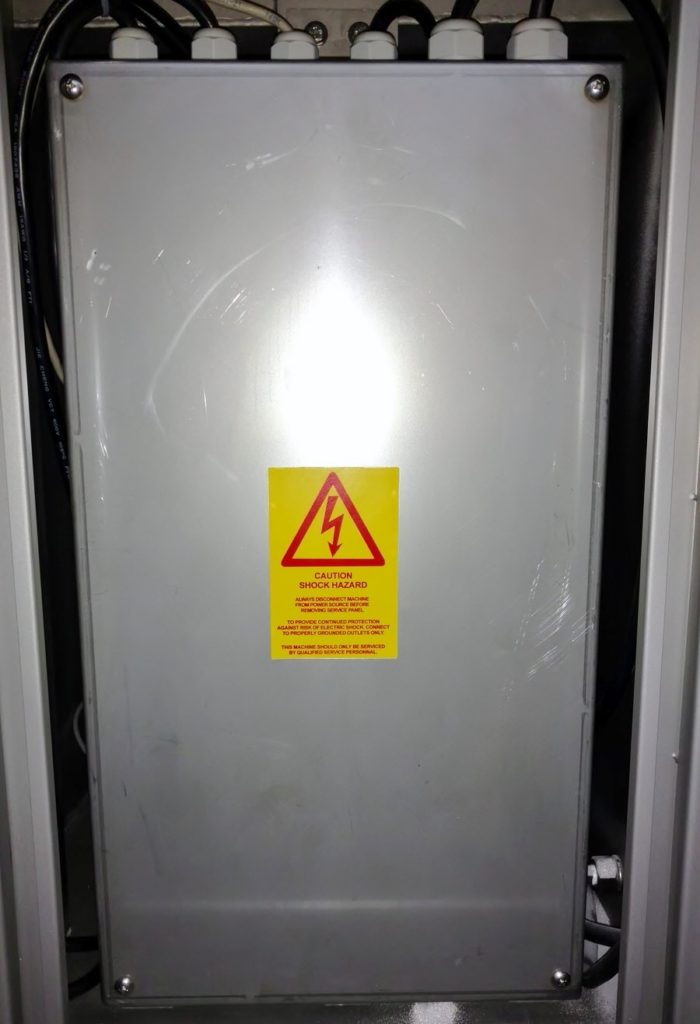

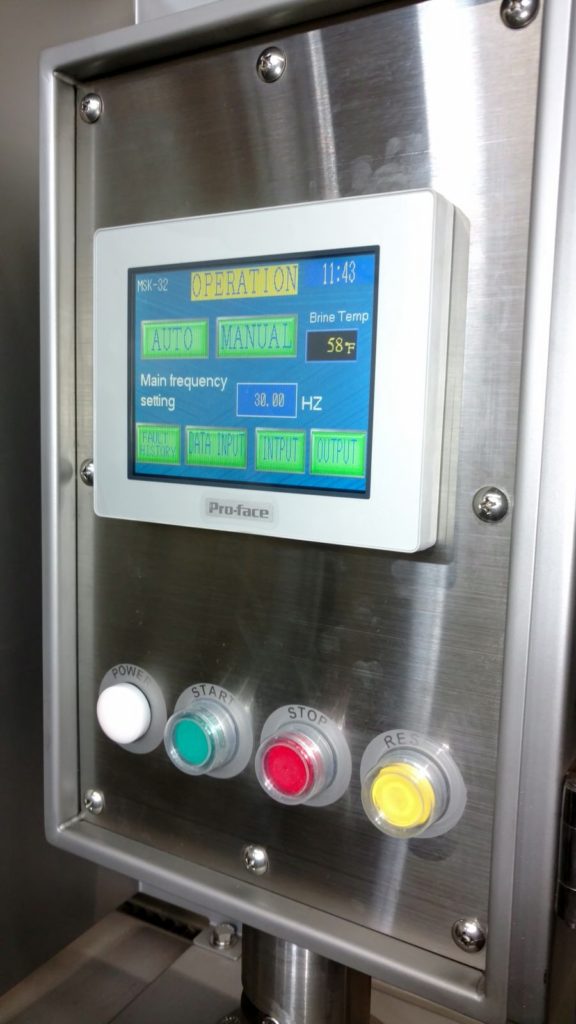

- PLC / HMI Control System
- Variable Speed Motor Drive up to 50 Strokes per Minute

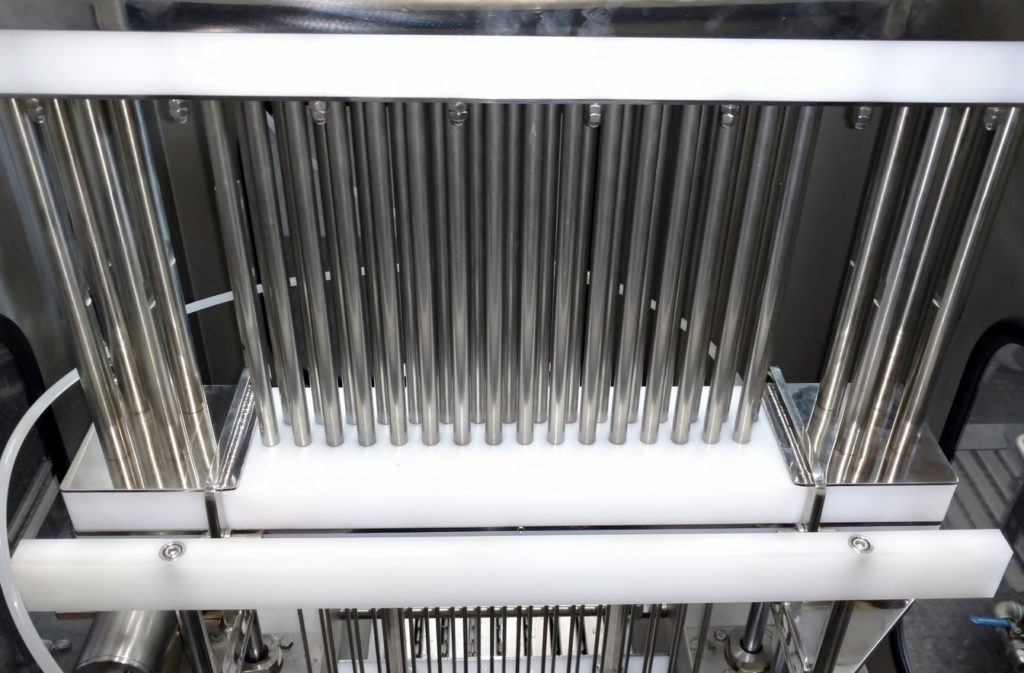

- Air Head Design for Needle Force

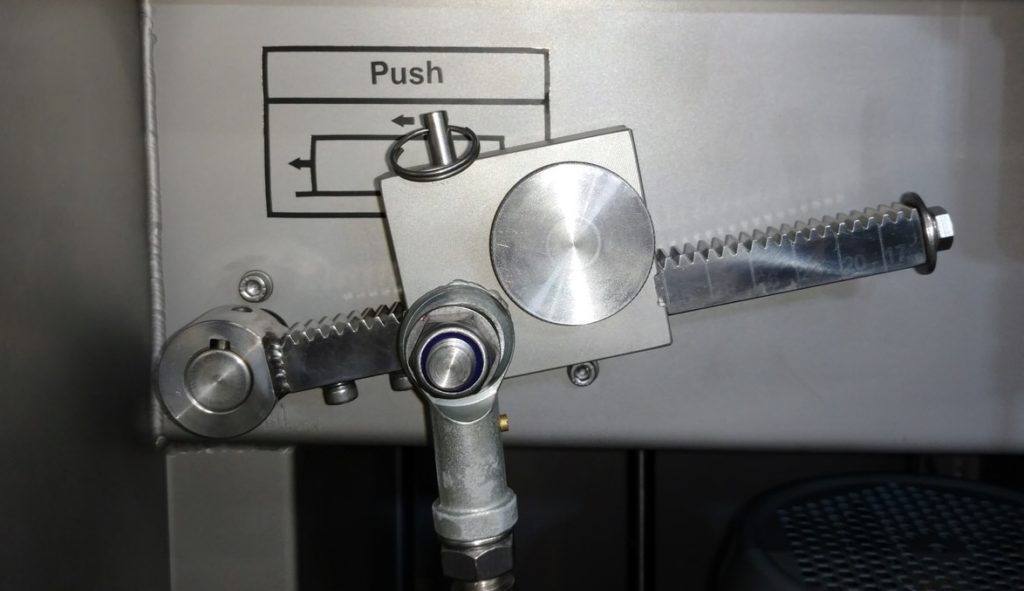

- Walking Beam System for Product Movement

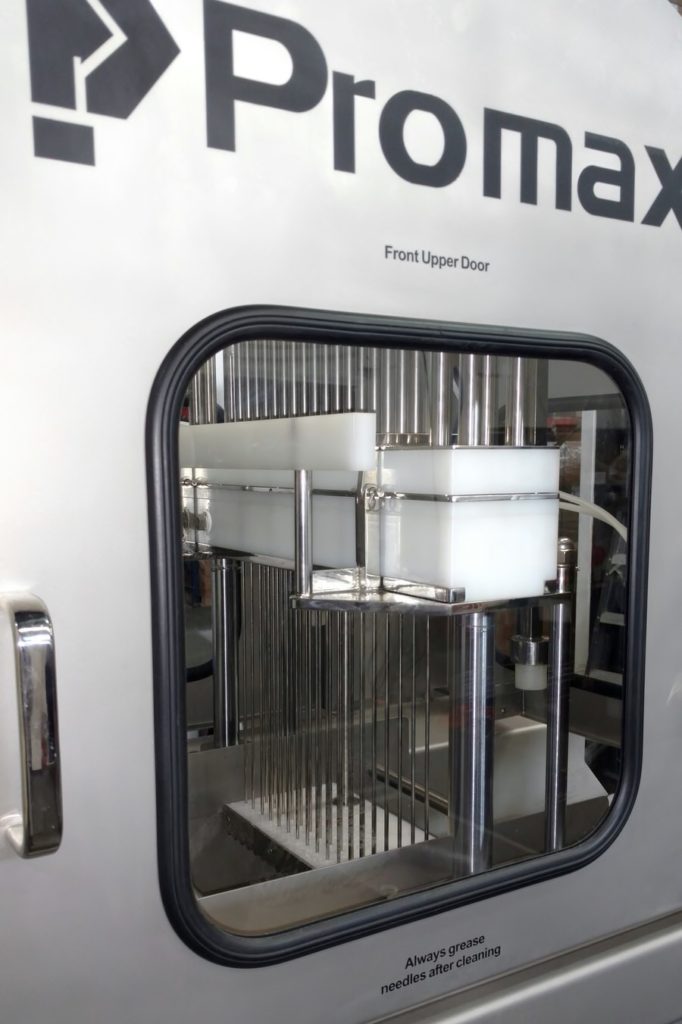

- Unique Needle Cleaning System
- Digital Brine Temperature Readout
| MODELS | MSK-32 |
|---|---|
| Number of Needles | 32 |
| Conveyor Width | 15″ / 380mm |
| Speed (strokes/min) | 30-60 |
| Max Product Height | 10″ / 250mm |
| Brine Tank Capacity | 31 gal / 140 liters |
| Machine Size LxWxH | 85″ x 49″ x 80″ |
Specifications are subject to change without notice.
Promarks Model MSK-56 Brine Injector
Features:
- Stainless Steel (# 304) Construction
- Centrifugal Brine Pump
- Stainless Steel (# 304) Brine Tank
- Brine Mixer
- PLC / HMI Control System
- Variable Speed Motor Drive up to 50 Strokes per Minute
- Air Head Design for Needle Force
- Walking Beam System for Product Movement
- Unique Needle Cleaning System
- Digital Brine Temperature Readout
| MODELS | MSK-56 |
|---|---|
| Number of Needles | 56 |
| Conveyor Width | 19″ / 480mm |
| Speed (strokes/min) | 30-60 |
| Max Product Height | 10″ / 250mm |
| Brine Tank Capacity | 53 gal / 200 liters |
| Machine Size LxWxH | 89″ x 53″ x 80″ |
Specifications are subject to change without notice.
