Introducing the JVR Model VacSeries!
Ranging from a household-friendly JVR Vac100 to a commercial dual seal bar Vac410. Consider this alternative to the dual chamber vacuum sealers.
JVR Vac610 – Single Phase Dual Chamber Vacuum Sealer
Features:
- Stainless Steel Construction
- Four 24″ seal bars
- Fast cycle times
- Simple digital controls
- Dual high-efficiency 24m3/h vacuum pumps
- Toolless seal bar removal
- 10mm extra-wide seal wire
| VacSeries Model | Vac610 [1 PH] | Vac610 [3 PH] |
|---|---|---|
| Machine Size (W, D, H) | 57.5″ x 27.5” x 38.5“ | 57.5″ x 27.5” x 38.5“ |
| Chamber Size (W, D, H) | 26.3″ x 21.5” x 7.5“ | 26.3″ x 21.5” x 7.5“ |
| Heat Strip Width | 10mm | 10mm |
| Seal Bar Length | 24″ (x4) | 24″ (x4) |
| Seal To Seal (L) | 17.5″ | 17.5″ |
| Machine Weight | 540 lbs | 630 lbs |
| Amperage | 16 Amps max | 13 Amps max |
| Voltage | 220V / 1ph / 60Hz | 220V / 3ph / 60Hz |
| Vacuum Pump Capacity | 24m3/h flow rate (x2) = 48m3/h flow rate | 100m3/h flow rate |
![JVR Vac610 [1 PH] - Dual Chamber Vacuum Sealer](https://jvrinc.com/wp-content/uploads/2023/01/Vac610-Top-Angle-2024.jpg "Vac610-Top-Angle-(2024)")
![JVR Vac610 [1 PH] - Dual Chamber Vacuum Sealer](https://jvrinc.com/wp-content/uploads/2023/05/Vac610-Back-2024.jpg "Vac610-Back (2024)")
JVR Vac610 – 3-Phase Dual Chamber Vacuum Sealer
Features:
- Stainless Steel Construction
- Four 24″ seal bars
- Fast cycle times
- Simple digital controls
- High flow 100m3/h vacuum pump
- Toolless seal bar removal
- 10mm extra-wide seal wire
| VacSeries Model | Vac610 [3 PH] | Vac610 [1 PH] |
|---|---|---|
| Machine Size (W, D, H) | 57.5″ x 27.5” x 38.5“ | 57.5″ x 27.5” x 38.5“ |
| Chamber Size (W, D, H) | 26.3″ x 21.5” x 7.5“ | 26.3″ x 21.5” x 7.5“ |
| Heat Strip Width | 10mm | 10mm |
| Seal Bar Length | 24″ (x4) | 24″ (x4) |
| Seal To Seal (L) | 17.5″ | 17.5″ |
| Machine Weight | 630 lbs | 540 lbs |
| Amperage | 13 Amps max | 16 Amps max |
| Voltage | 220V / 3ph / 60Hz | 220V / 1ph / 60Hz |
| Vacuum Pump Capacity | 100m3/h flow rate | 24m3/h flow rate (x2) = 48m3/h flow rate |
Promarks Model DC-530
Features:
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (2hp standard option)
- Easy to use digital control board (PD-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- Mechanical knife cut-off system
- Automatic lid transfer
- Programmable water-resistant control panel (PNC-01)
- Gas flush
- Top and bottom bi-active sealing
- 3 or 5hp Busch vacuum pumps for faster cycling
- Optional Voltages:
- Single phase 220v
- Three phase 440v
| MODELS | DC-530 |
|---|---|
| Chamber Sizes | 30″ x 23.6″ (760x600mm) |
| Chamber Depth | 8″/203mm |
| Distance Between Seal Bars | 16.7″/425mm |
| Seal Bar Length | 21.3″/540mm |
| Vacuum Pump Capacity | 26 ACFM |
| Electrical | 220V/3PH/60HZ/15AMP |
| Machine Size (L) x (W) x (H) | 58″ x 25″ x 45″ |
| Machine Weight | 657 lbs. / 298 kg |
Promarks Model DC-640
Features:
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (3hp standard option)
- Programmable water-resistant control board (PNC-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- Mechanical knife cut-off system
- 10″ lid for packaging larger products
- Automatic lid transfer
- Gas flush
- Top and bottom bi-active sealing
- 5 or 7.5hp Busch vacuum pumps for faster cycling
- Optional Voltages:
- Single phase 220v (only available with 3 or 5hp vacuum pump)
- Three phase 440v
| MODELS | DC-640 |
|---|---|
| Chamber Sizes | 32.2″ x 28.9″ (818x734mm) |
| Chamber Depth | 8.3″/210mm |
| Distance Between Seal Bars | 22″/560mm |
| Seal Bar Length | 25″/634mm |
| Vacuum Pump Capacity | 36 ACFM |
| Electrical | 220V/3PH/60HZ/20AMP |
| Machine Size (L) x (W) x (H) | 62″ x 31″ x 45″ |
| Machine Weight | 908 lbs. / 412 kg |
Promarks Model DC-650
Features:
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (5hp standard option)
- Programmable water-resistant control board (PNC-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- Mechanical knife cut-off system
- 10″ lid for packaging larger products
- Automatic lid transfer
- Gas flush
- Top and bottom bi-active sealing
- 7.5 hp Busch vacuum pump for faster cycling
- Optional Voltages:
- Single phase 220v (only available with 5hp vacuum pump)
- Three phase 440v
| MODELS | DC-650 |
|---|---|
| Chamber Sizes | 32.2″ x 35″ (818x890mm) |
| Chamber Depth | 8.4″/213mm |
| Distance Between Seal Bars | 28″/715mm |
| Seal Bar Length | 25″/634mm |
| Vacuum Pump Capacity | 56 ACFM |
| Electrical | 220V/3PH/60HZ/25AMP |
| Machine Size (L) x (W) x (H) | 62″ x 37″ x 39″ |
| Machine Weight | 1216 lbs. / 552 kg |
Promarks Model DC-800
Features:
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (5hp standard option)
- Programmable water-resistant control board (PNC-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- Mechanical knife cut-off system
- 12″ chamber lid for packaging larger products
- Automatic lid transfer
- Gas flush
- Top and bottom bi-active sealing
- 7.5 or 12 hp Busch vacuum pump for faster cycling
- Optional Voltages:
- Single phase 220v (only available with 5hp vacuum pump)
- Three phase 440v
| MODELS | DC-800 |
|---|---|
| Chamber Sizes | 38.6″ x 31″ (980x787mm) |
| Chamber Depth | 10″/255mm |
| Distance Between Seal Bars | 24.2″/615mm |
| Seal Bar Length | 31.4″/800mm |
| Vacuum Pump Capacity | 56 ACFM |
| Electrical | 220V/3PH/60HZ/25AMP |
| Machine Size (L) x (W) x (H) | 75″ x 33″ x 47″ |
| Machine Weight | 1261 lbs. / 572 kg |

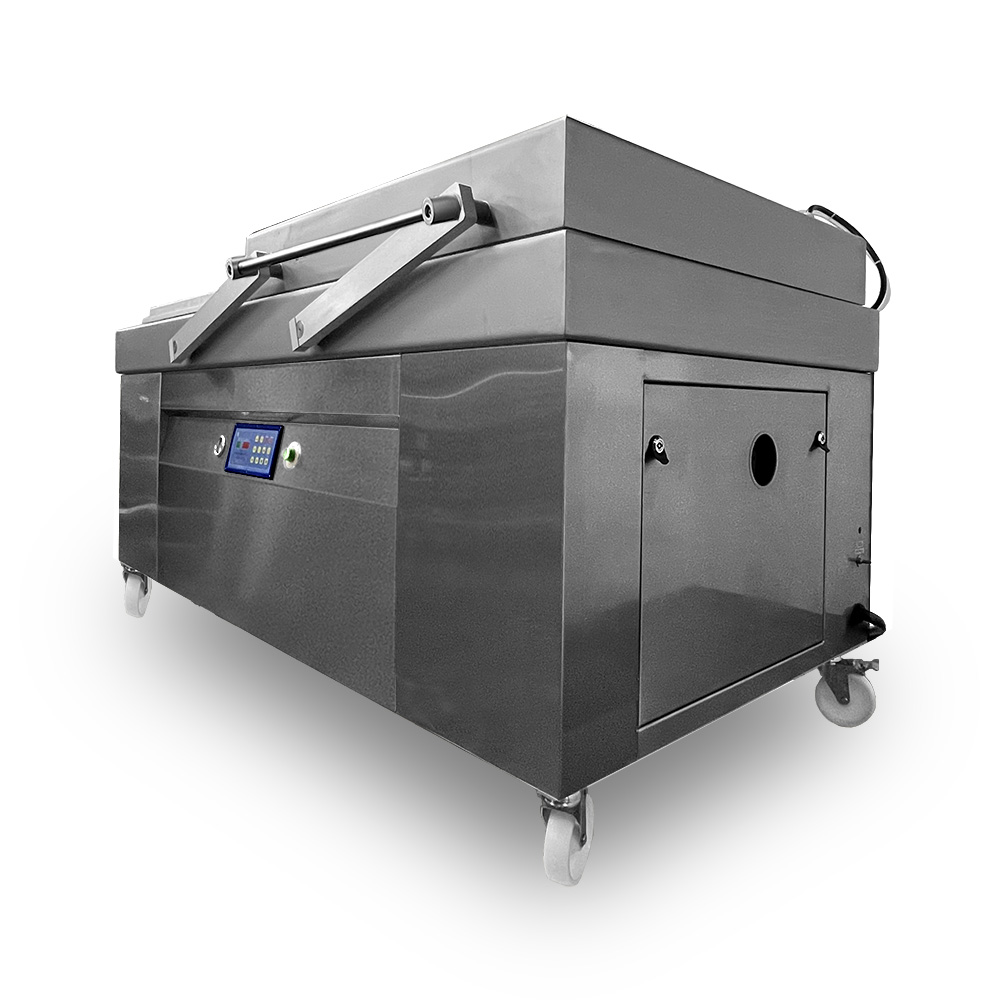

Promarks Model DC-860
Features:
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (7.5 hp standard option)
- Programmable water-resistant control board (PNC-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- 12 hp Busch vacuum pump
- Mechanical knife cut-off system
- 12″ chamber lid for packaging larger products
- Automatic lid transfer
- Gas flush
- Top and bottom bi-active sealing
- Optional Voltages:
- Three phase 440v
| MODELS | DC-860 |
|---|---|
| Chamber Sizes | 41.3″ x 40.6″ (1050x1030mm) |
| Chamber Depth | 10″/255mm |
| Distance Between Seal Bars | 33.8″/858mm |
| Seal Bar Length | 34.3″/870mm |
| Vacuum Pump Capacity | 212 ACFM |
| Electrical | 220V/3PH/60HZ/40AMP |
| Machine Size (L) x (W) x (H) | 81″ x 42″ x 48″ |
| Machine Weight | 2105 lbs. / 955 kg |
Promarks Model DC-900
Features:
- Automatic lid transfer with a safety system
- Stainless-steel construction
- Sanitary flat deck design with removable cushion bars
- Busch Vacuum Pump (12hp standard option)
- Programmable water-resistant control board (PNC-01)
- Hide-away control panel for wash down
- Quick disconnect seal bars
- Extra wide 10mm seal band
- Reliable bladder-activated sealing system
- High-density plastic filler plates
- Heavy-duty stainless-steel casters
- Air assisted sealing
Options:
- Mechanical knife cut-off system
- Gas flush
- Top and bottom bi-active sealing
- Optional Voltages:
- Three phase 440v
| MODELS | DC-900 |
|---|---|
| Chamber Sizes | 48″ x 41.6″ (1218x1057mm) |
| Chamber Height | 11.25″/285.75mm |
| Distance Between Seal Bars | 34.9″/887mm |
| Seal Bar Length | 39.25″/996.95mm |
| Vacuum Pump Capacity | 212 ACFM |
| Electrical | 220V/3PH/60HZ/40AMP |
| Machine Size (L) x (W) x (H) | 98″ x 47″ x 50″ |
| Machine Weight | 2337 lbs. / 1060 kg |
