How to Change the Vacuum Pump Exhaust Filter (310-33, RVS20-32): Vac310
“The exhaust filter function encourages the recycling of clean oil and efficient vacuum pump performance.”
Our promise stands true that we will consistently be providing top-notch service for your machine to keep it up and running for as long as it takes! Today, we will go over the role and importance of replacing your Vac310 exhaust filter and how to replace it to maintain optimal vacuum pump performance.
Oil Pump Machine Compatibility
Exhaust Filter (White Pump, 310-33 or RVS20-32): Compatible with SECOND generation Vac310 (1-Bar) and Vac310 (2-Bar) chamber vacuum sealers that house the WHITE pump. Continue to the next section.
NOTE: If you own a FIRST generation Vac310 (1-Bar) or Vac310 (2-Bar) chamber vacuum sealer housing a GRAY vacuum pump, then read here for instructions on how to replace the compatible exhaust filter (310-32).
The Importance of an Exhaust Filter to Proper Functioning
The main purpose of the exhaust filter is to provide a reliable form of protection for the vacuum pump system against any excess moisture from liquid products or dust that the vacuum could carry in from the chamber. During operation, the oil is suspended in the air creating an oil mist that is caught and recycled while, simultaneously, any particles are filtered out so that your pump expels clean air. The exhaust filter function encourages the recycling of clean oil and efficient vacuum pump performance.
For an oil pump that can handle pulling 99% of air from the chamber bag, regular upkeep is a must. With proper upkeep, your Vac310 will run proficiently for years to come – well over 10 years is normal! Thankfully, service is made easy on your machines, so you can fit a simple part replacement into almost any busy day.
Exhaust Filter Benefits
Boosts the energy efficiency.
Decreases energy consumption.
Ensures your rotary vane oil-lubricated pump expels clean air.
How Often Should You Change the Exhaust Filter
A number of circumstances can indicate the need to change your exhaust filter.
General Upkeep: We recommend replacing the exhaust filter once a year.
Smoke: You notice a puff of smoke at the beginning of a vacuum seal cycle.
Odor: You notice smoke or oil odor coming from the exhaust exiting the JVR Vac310 vacuum pump.
Preparations
Difficulty Level
Moderate
Time Required
Approximately 30 Minutes
Tools Needed
#2 Phillips Screwdriver
13 mm Combination Wrenches
5 mm Allen Wrench (comes with the Vac310)
2″x4″ Wood Block (x2)
Vac310 Exhaust Filter (White Pump, 310-33 or RVS20-32)
Safety Precautions
Power off the unit and unplug it from its power source.
Place your vac310 chamber vacuum sealer on a stable surface.
Latch the lid closed.
Steps to Change the Exhaust Filter
Accessing the Vacuum Pump

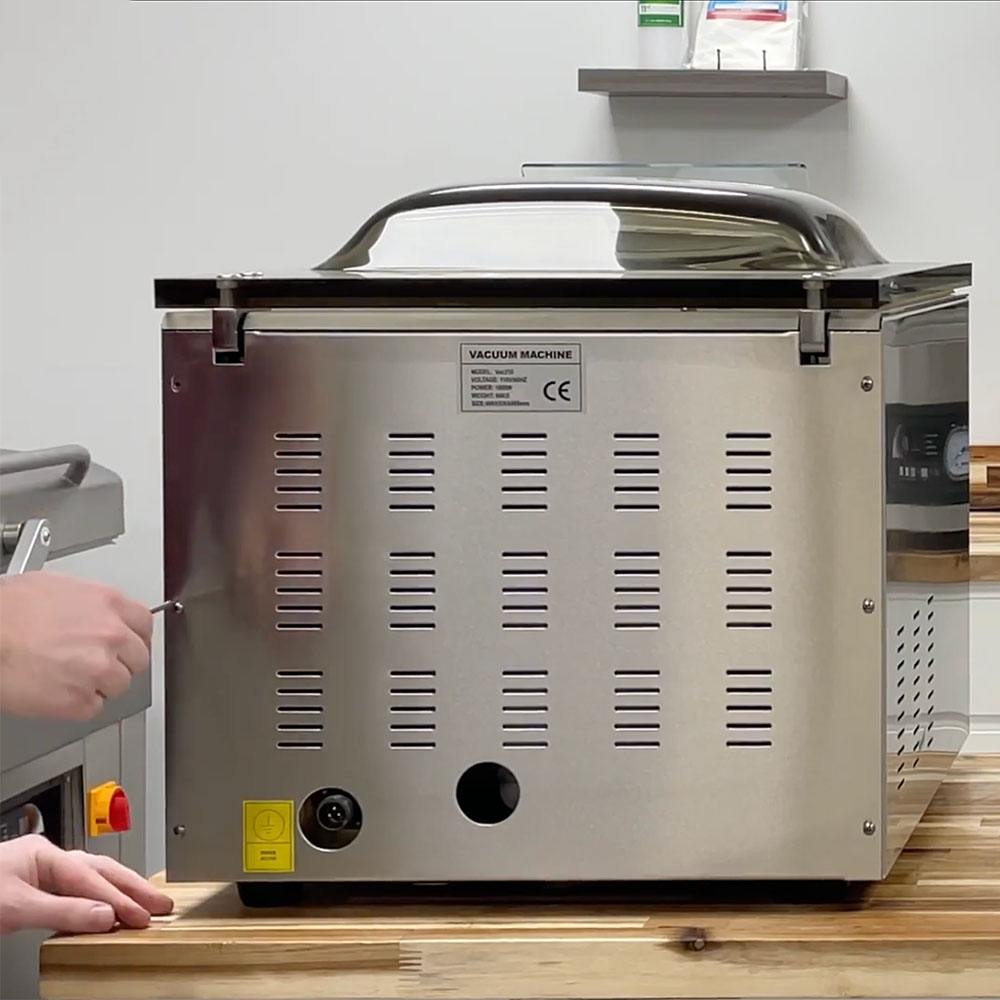

1. Use #2 Phillips to unscrew all six screws securing the back panel. Make sure to hold the base of the panel at the last two top screws to keep it from falling.

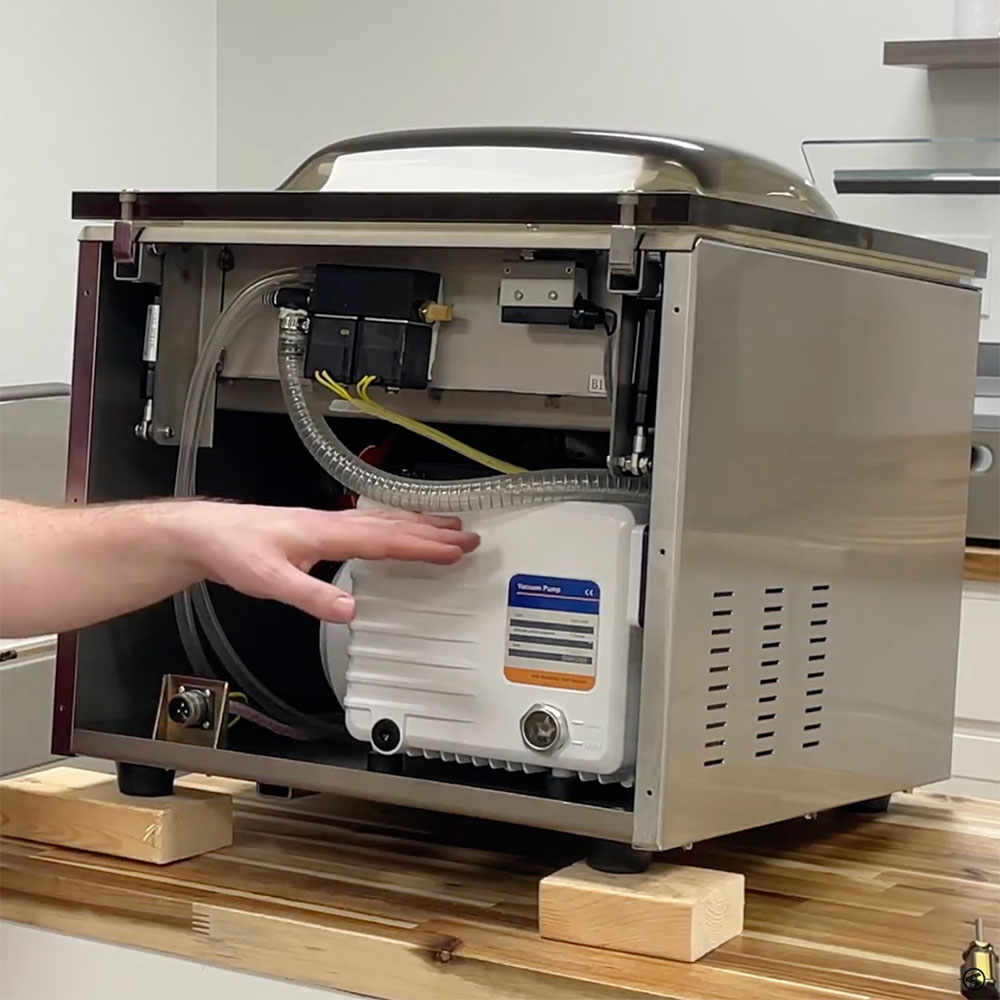

2. Place 2×4 wood blocks under each back leg to prop up the unit.

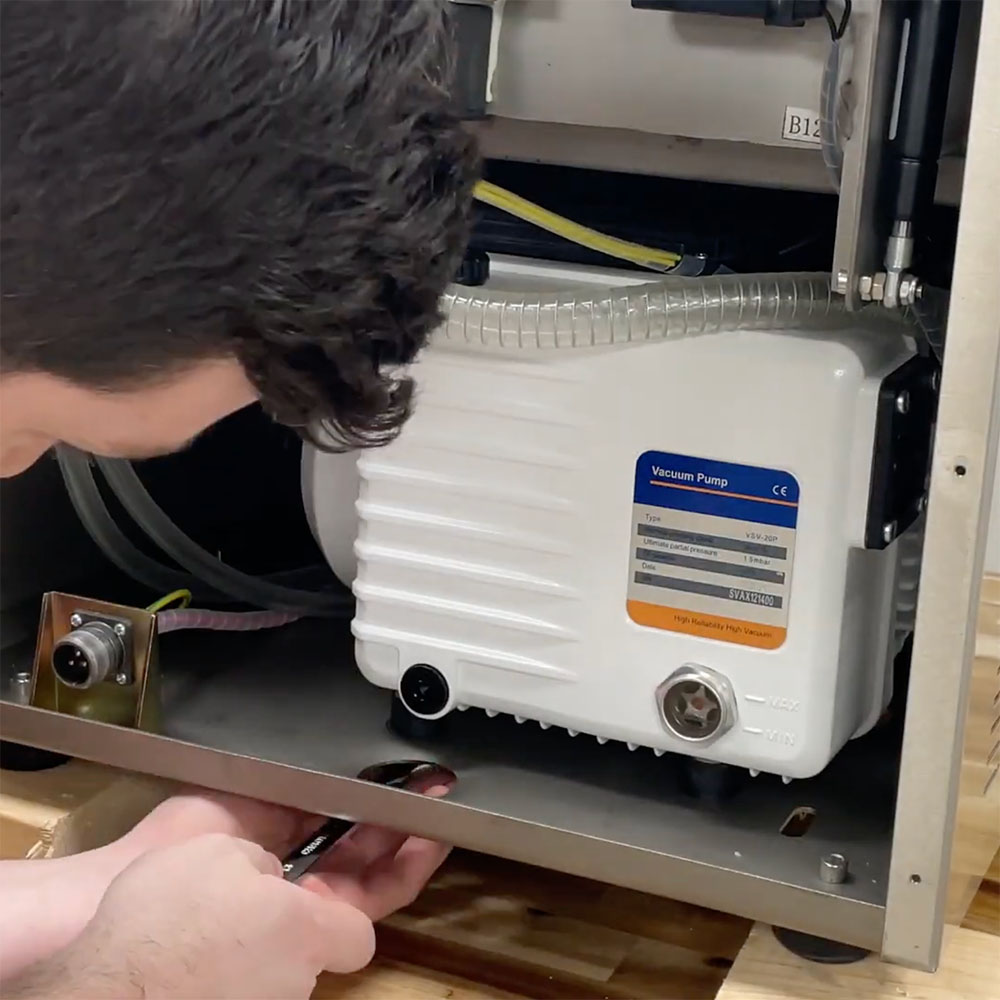

3. Use the 13 mm Combination Wrench to remove the four nuts found underneath the unit that secures the pump. We recommend using the ratcheting end, but either works!

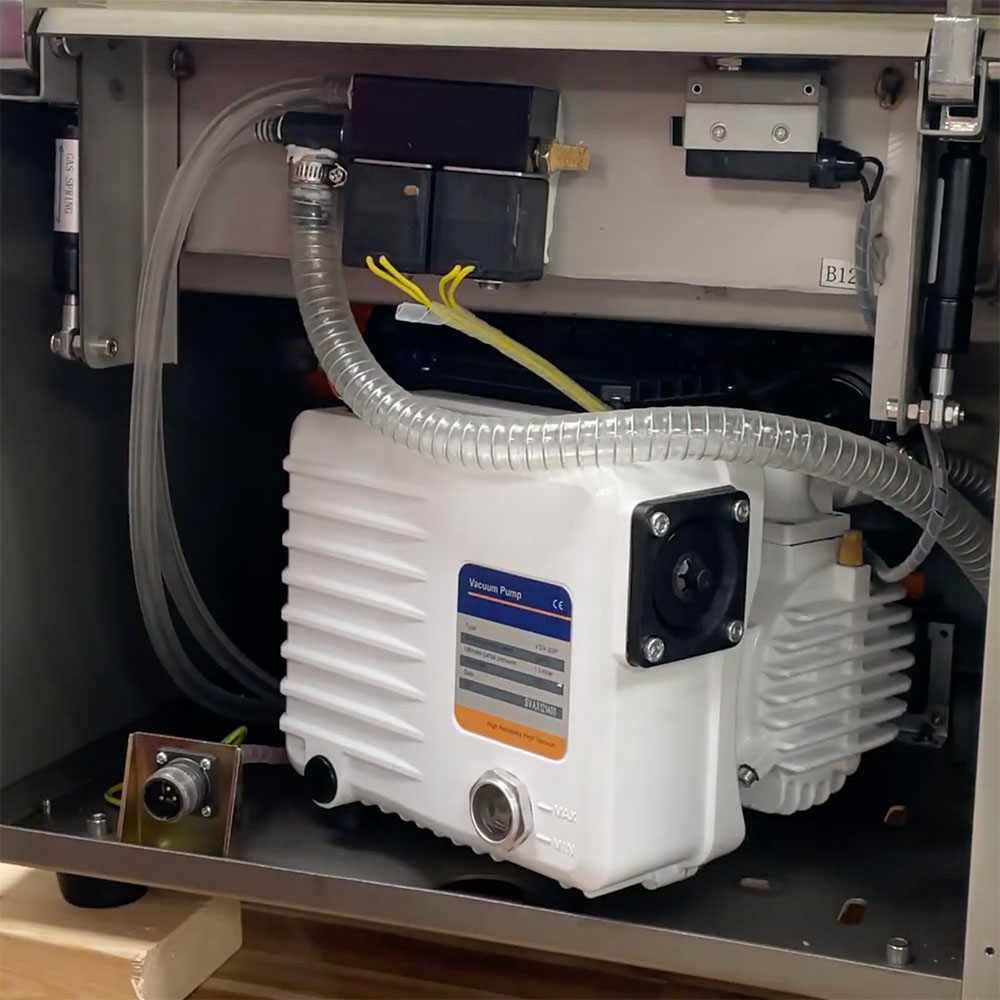

4. Turn the vacuum pump about 45° to access the side closest to the side of the unit.
Changing the Vacuum Pump Exhaust Filter

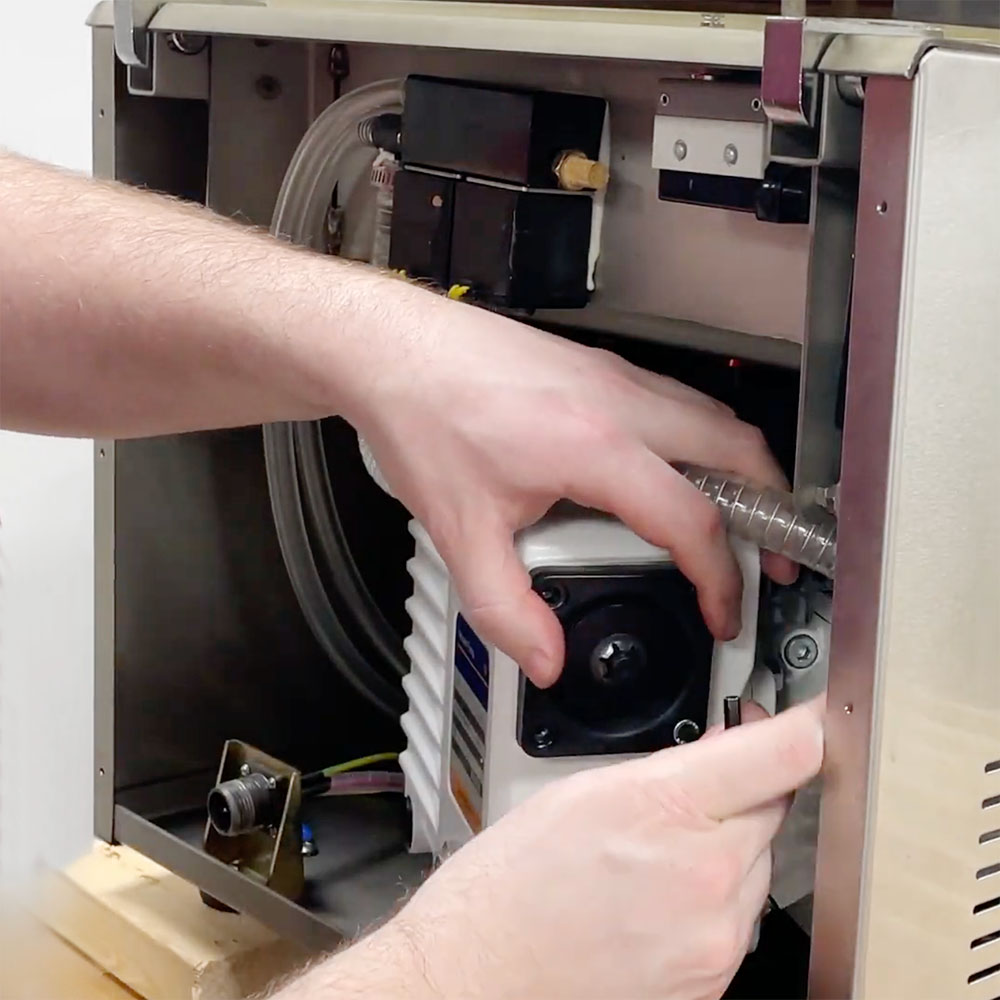

5. Remove the filter cap using the 5 mm Allen Wrench.

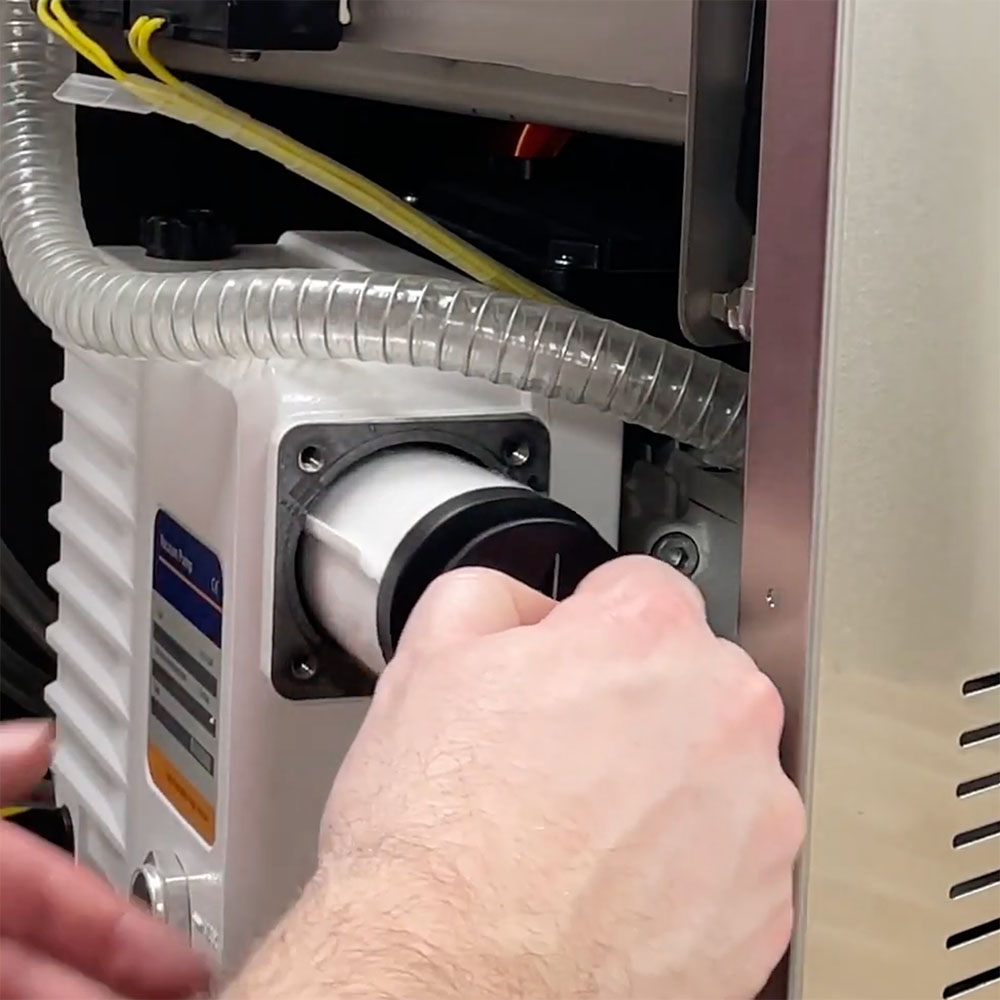

6. Remove the exhaust filter.

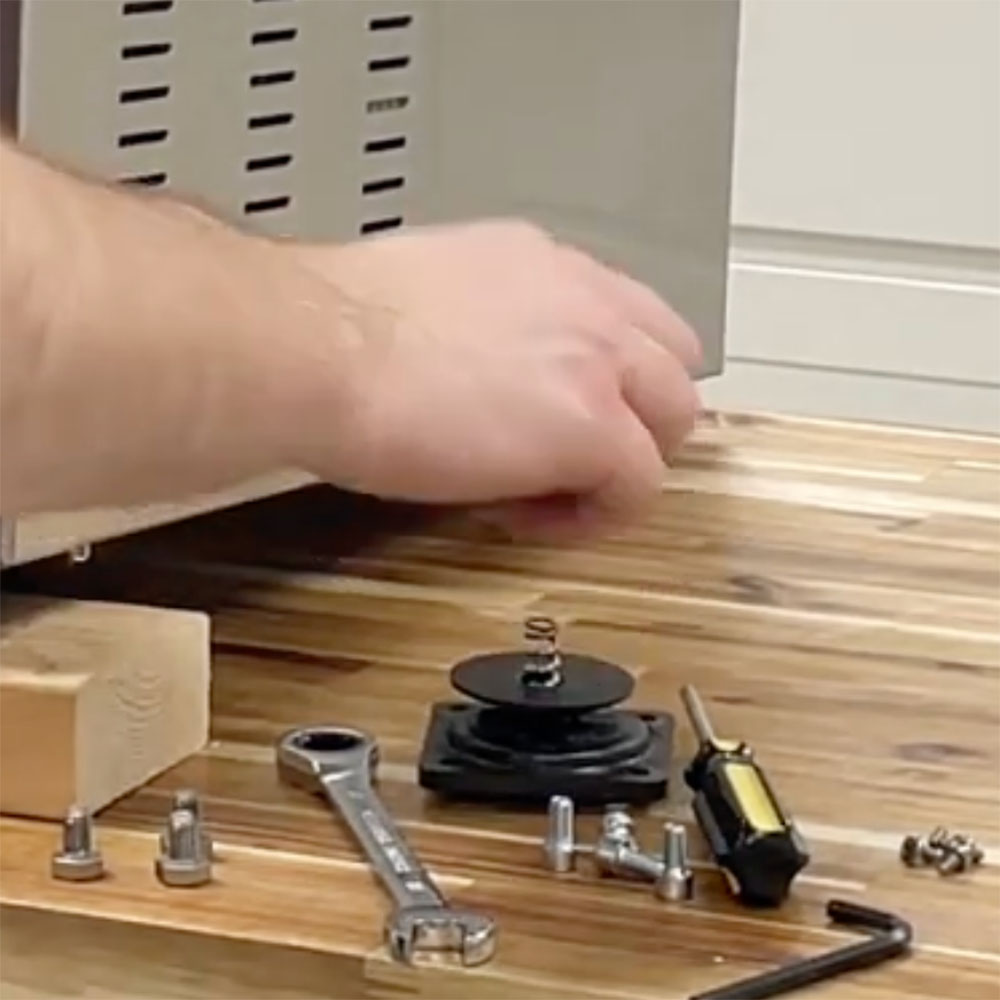

7. Set the circular disc and spring aside to reuse.

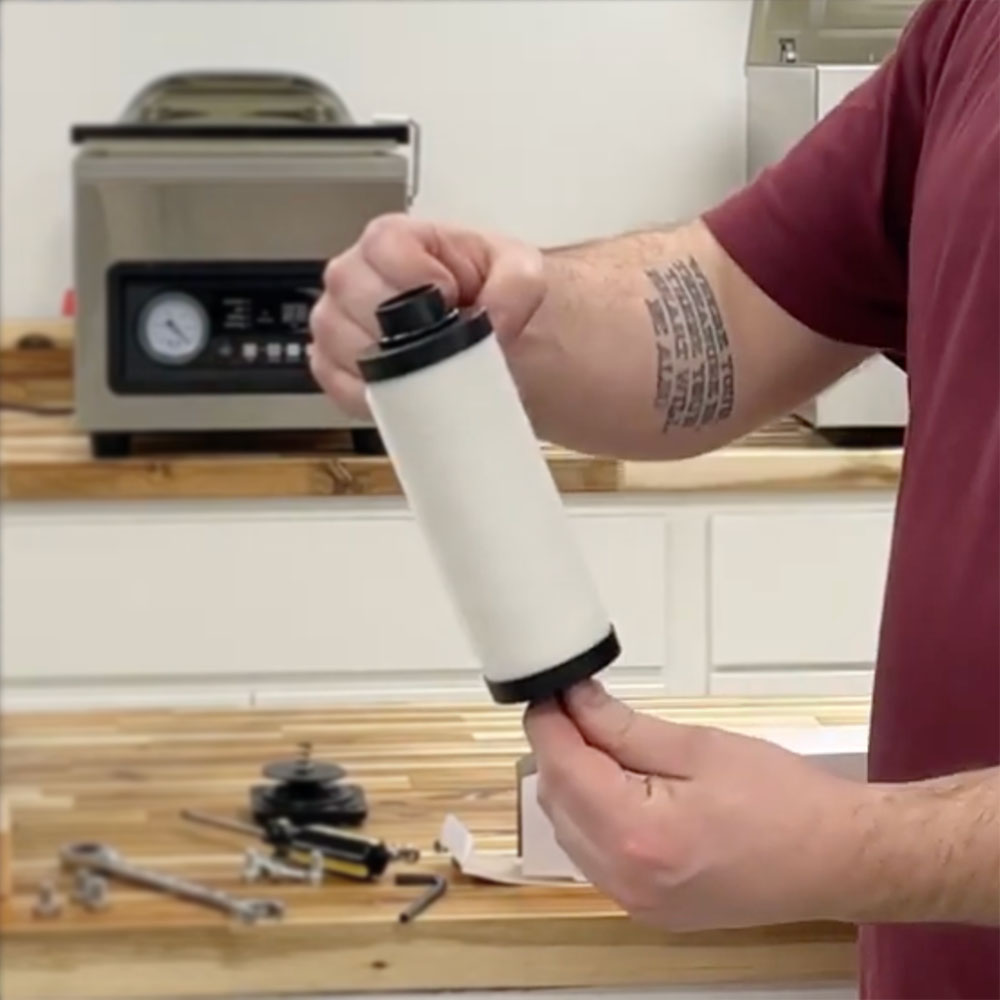

8. Acquire your new exhaust filter – make sure not to lose the new O-ring!

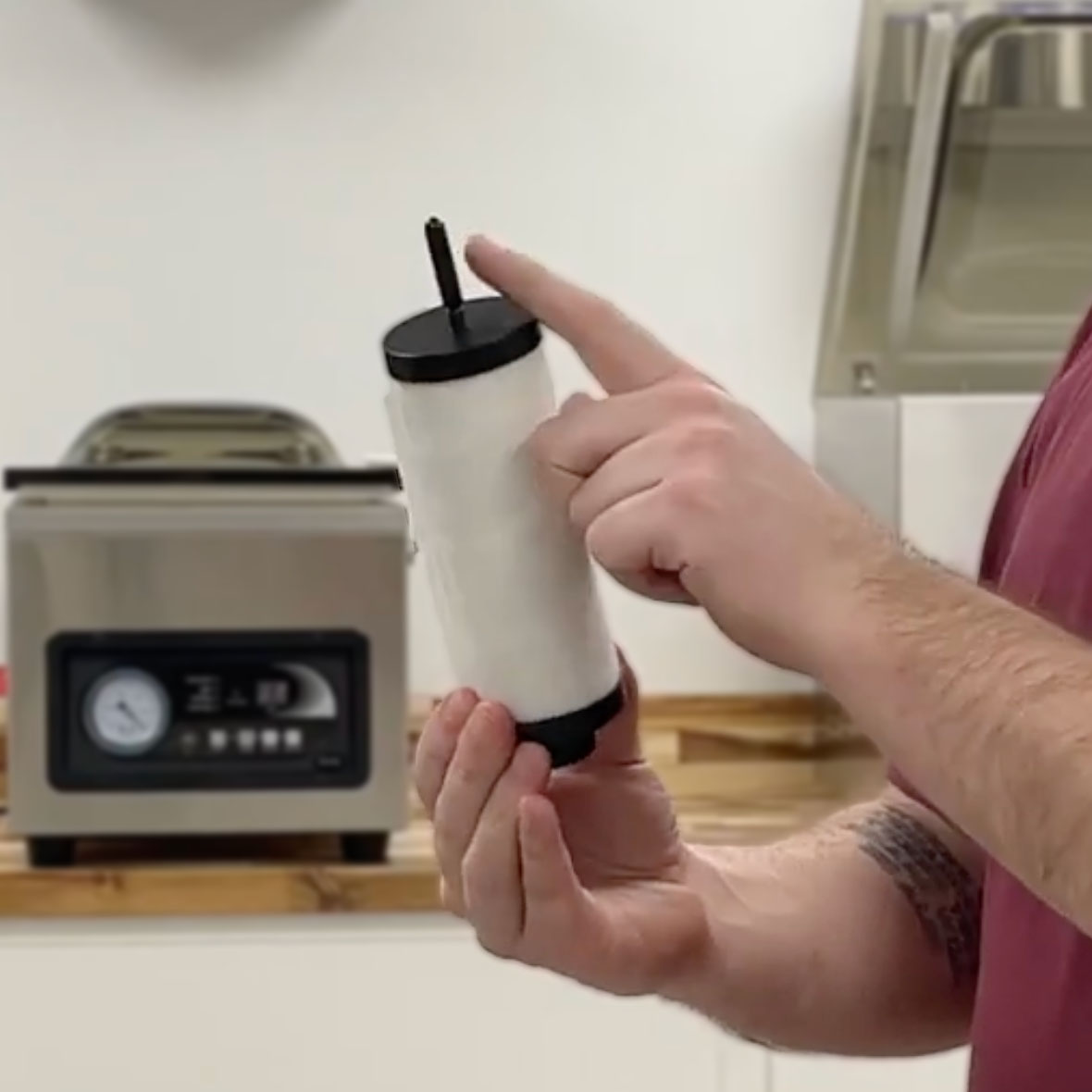

9. On the opposing end, remove the rubber sleeve.

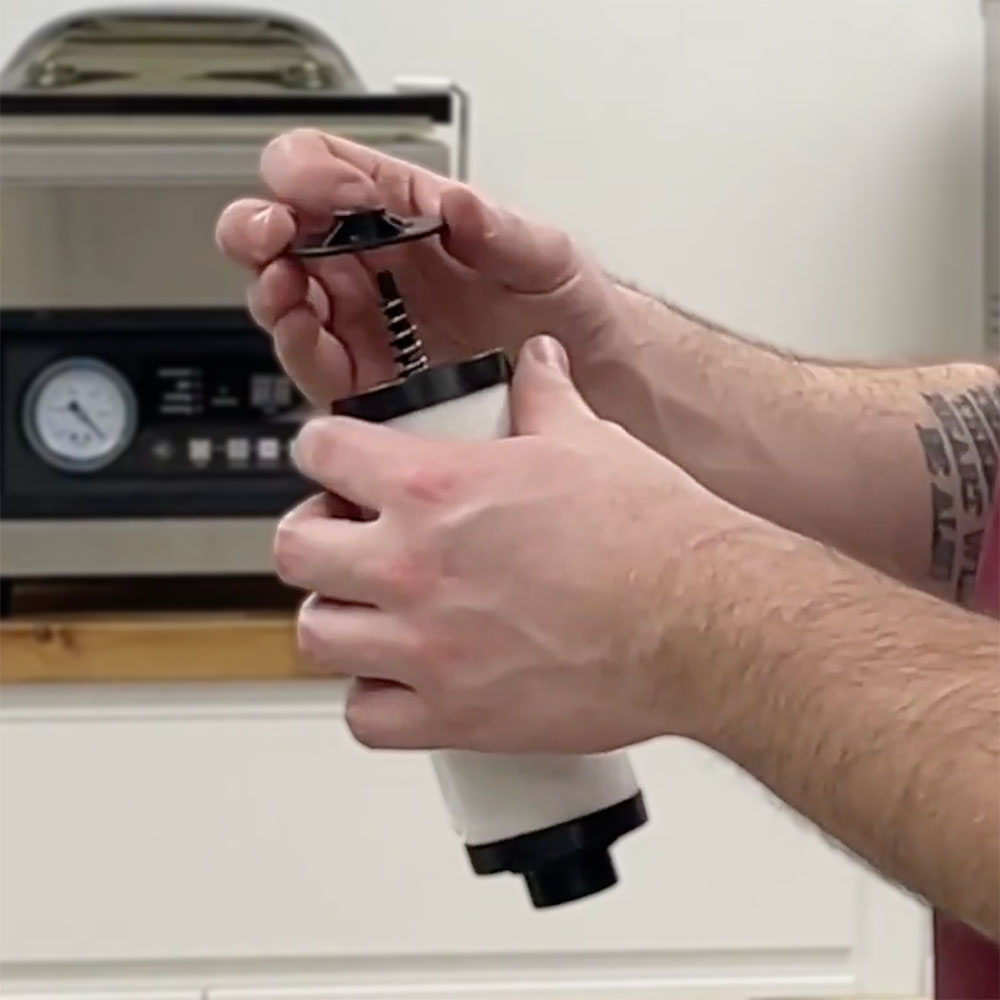

10. Reinsert the spring and circular disc in this order.

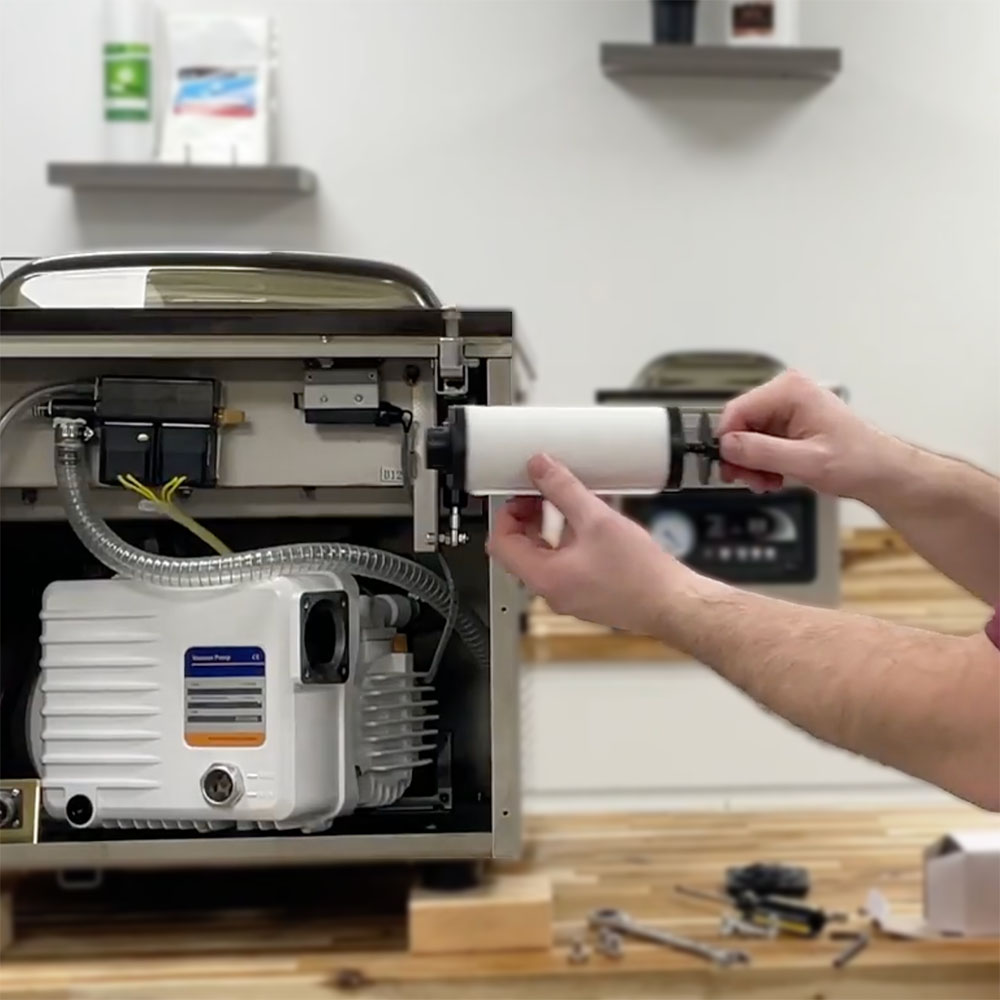

11. Grab the exhaust filter by the end of the thread and insert it directly, base first, into the pump until you tap the opposing side.

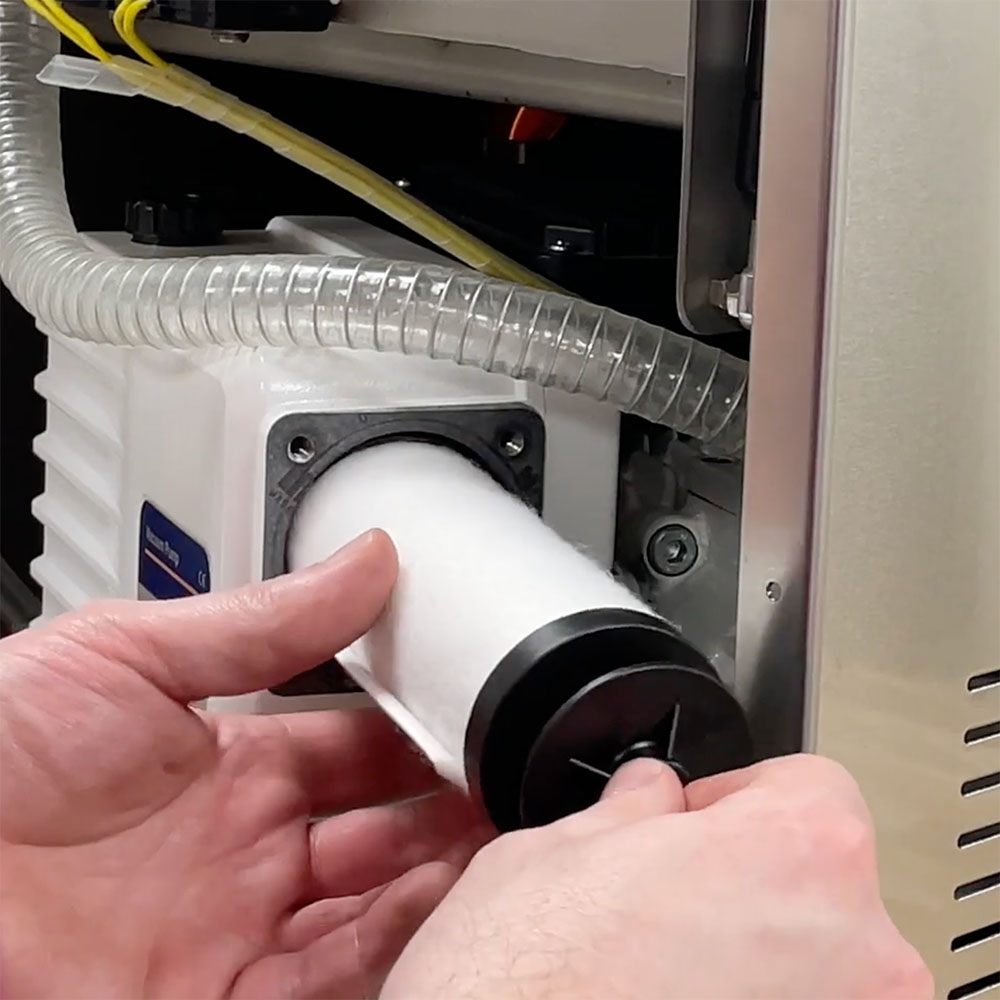

12. Use the circular disc as a reference to ensure the exhaust filter is centered.

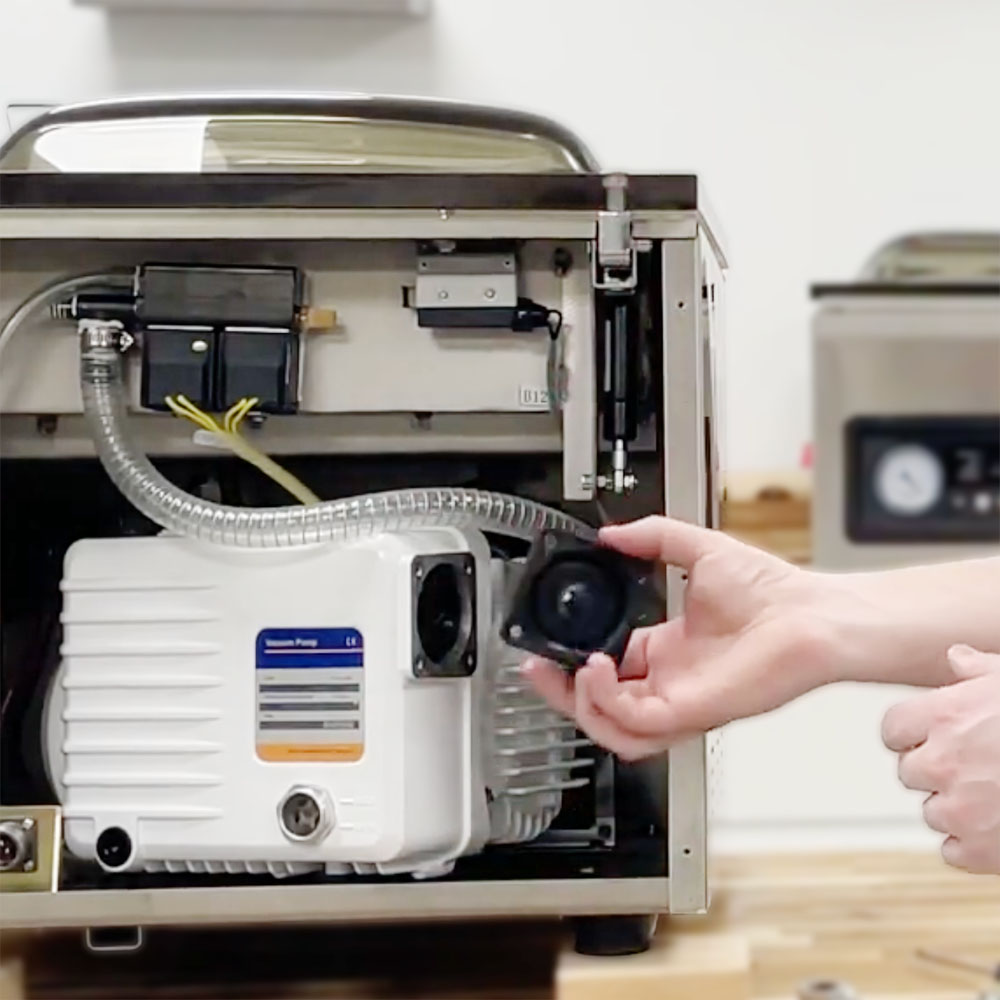

13. Secure the filter cap over the filter and secure the screws using the Allen wrench.
Last Steps

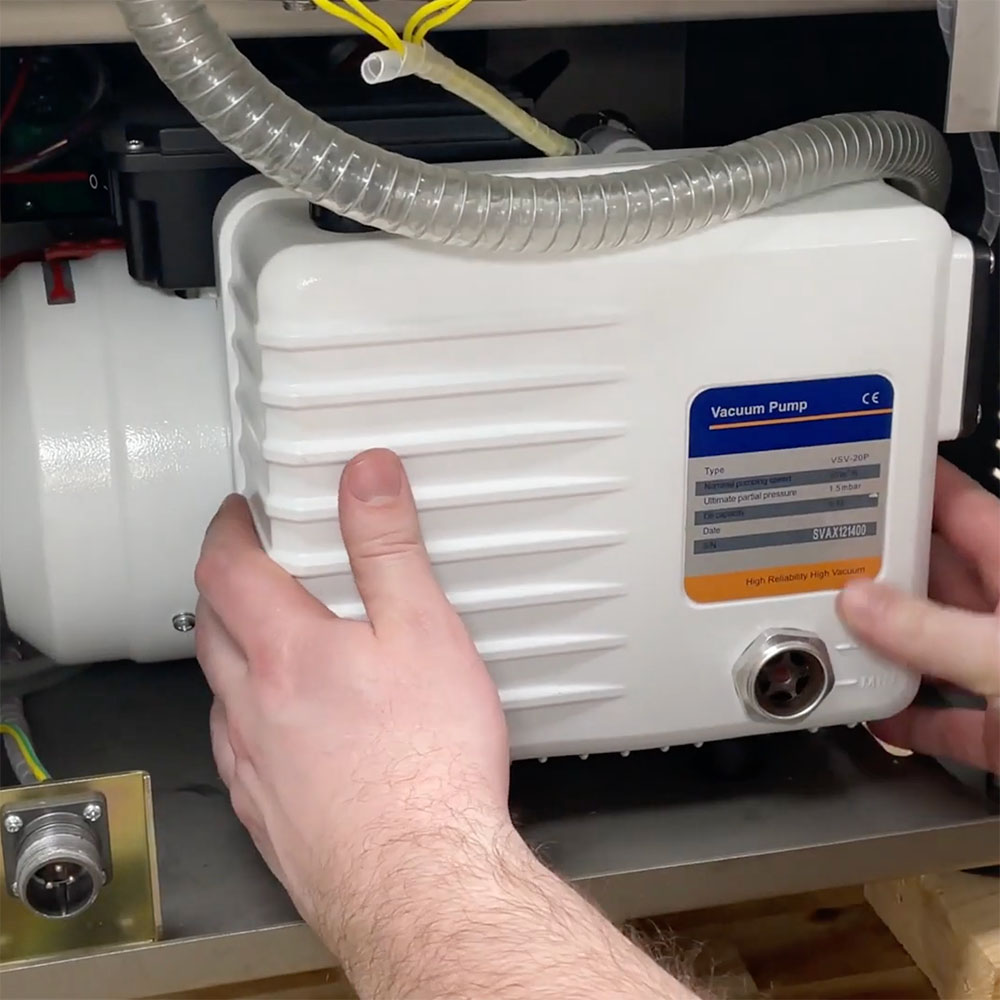

14. Rotate the vacuum pump back to its original position.

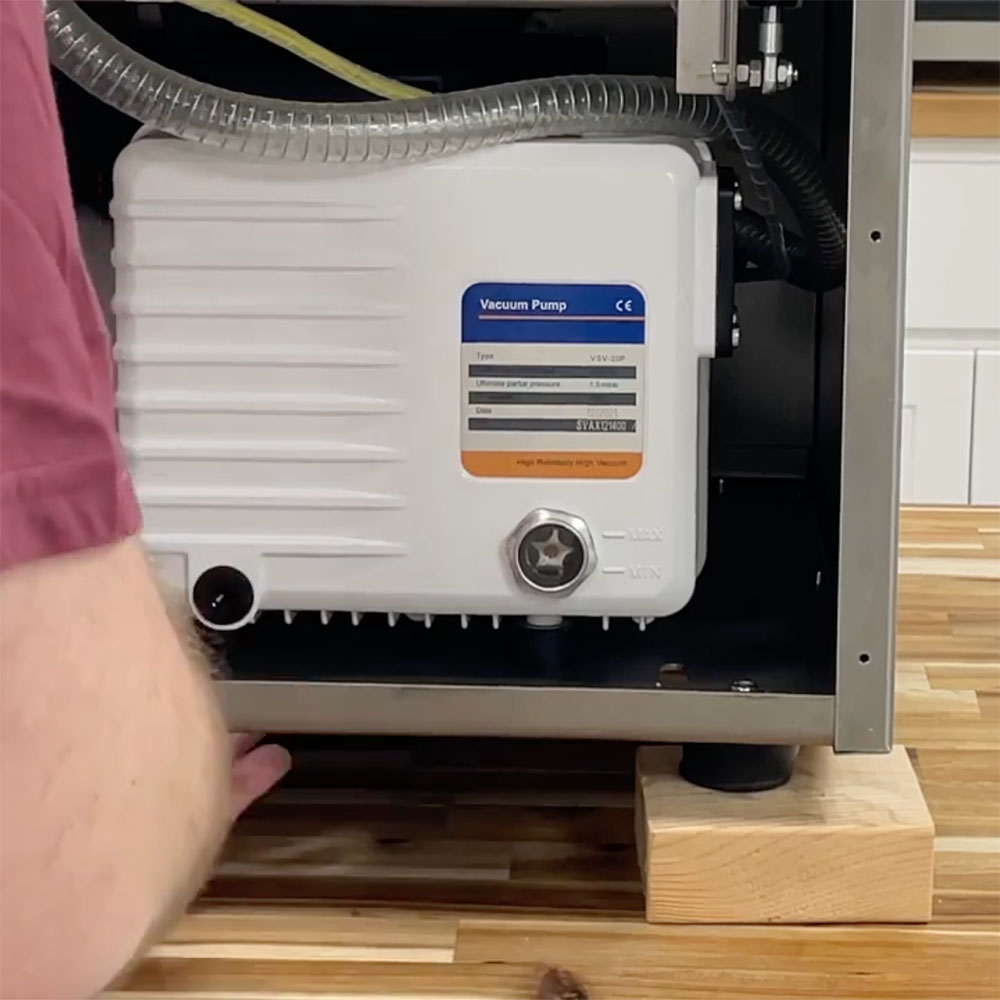

15. Secure the nuts at the bottom of the unit using the 13 mm Combination wrench.

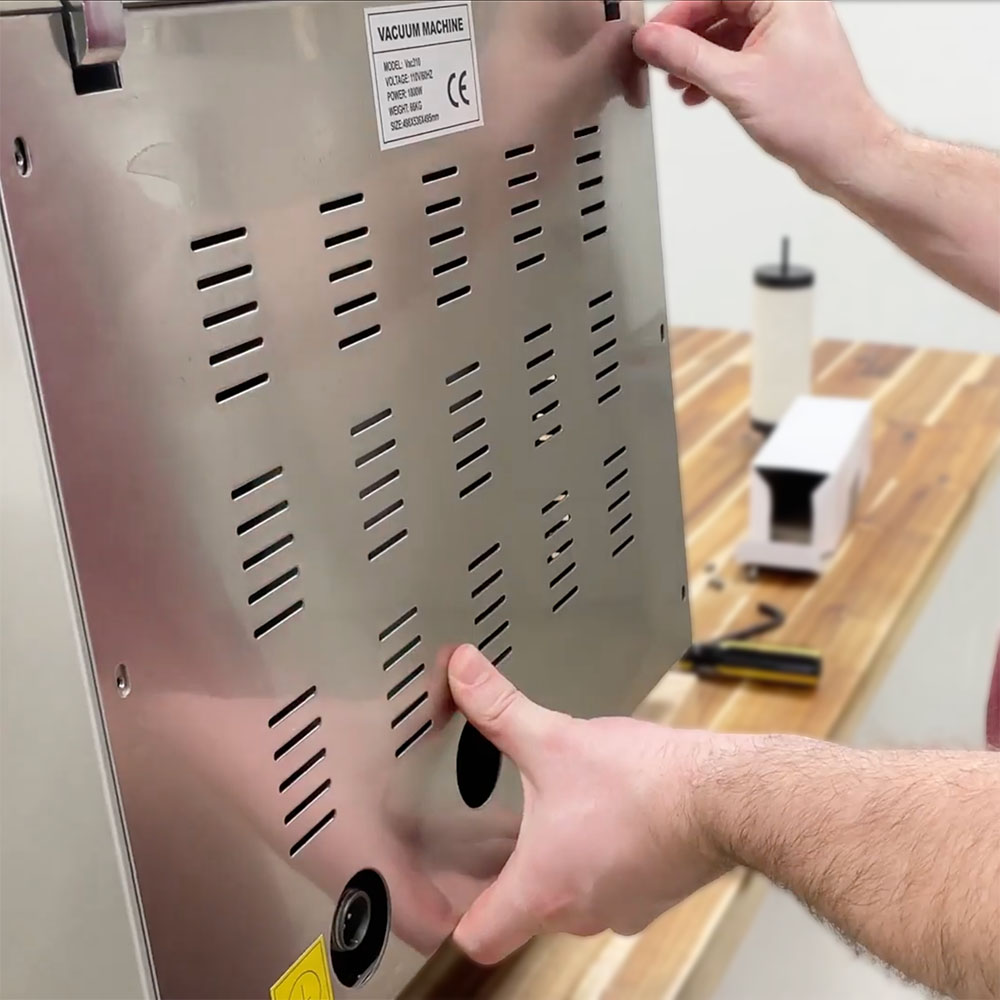

16. Reapply the back the back panel.

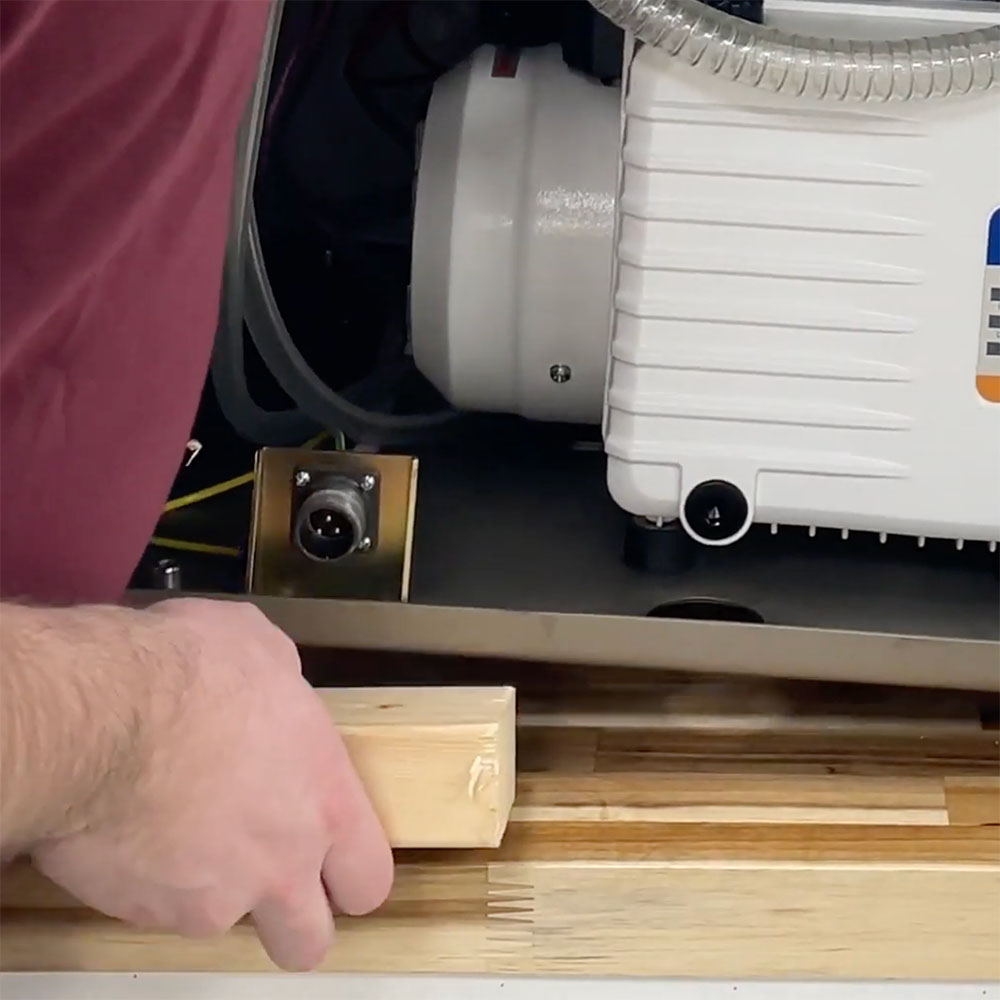

17. Remove the 2×4 blocks.
Your unit is all set for optimal functioning!
